PoE+ Gigabit Injector 60W, -40°C to +80°C
The Gigabit Ethernet PoE Injector EX-60310 in a robust metal housing allows end devices such as IP telephones, IP cameras, WLAN access points, etc. to be powered via the network cable. It supports the PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+ / Hi-PoE) and enables a maximum power output of up to 60W at the PoE port. Power is supplied via the +12~48V terminal block using an optional external power supply. The EX-60310 guarantees secure data transmission and excellent performance of up to 1000Mbps. The rugged metal housing and extended operating temperature range of -40°C to 80°C make it suitable for a wide range of applications, even in harsh environments. Supplied with a pre-assembled DIN rack kit and wall mounting bracket.
- Provides power to remote network devices
- 10/100/1000Base-T Gigabit Ethernet
- Fully compliant with IEEE 802.3af/at Power over Ethernet (PoE), Mode/Alternative A and B
- Maximum power delivered:
- 802.3af, Type 1: 15.40W (PSE), 12.95W (PD)
- 802.3at, Type 2: 30.00W (PSE), 25.50W (PD)
- 802.3at, Hi-PoE: 60.00W (PSE), 51.00W (PD)
- Plug and play, no configuration and installation required
- LED status indicators for power supply and PoE
- Terminal block for DC input, +12 V to +48 VDC
- Scales the input voltage to the PoE voltage range (42 - 57VDC)
- Rugged, compact metal housing, IP40

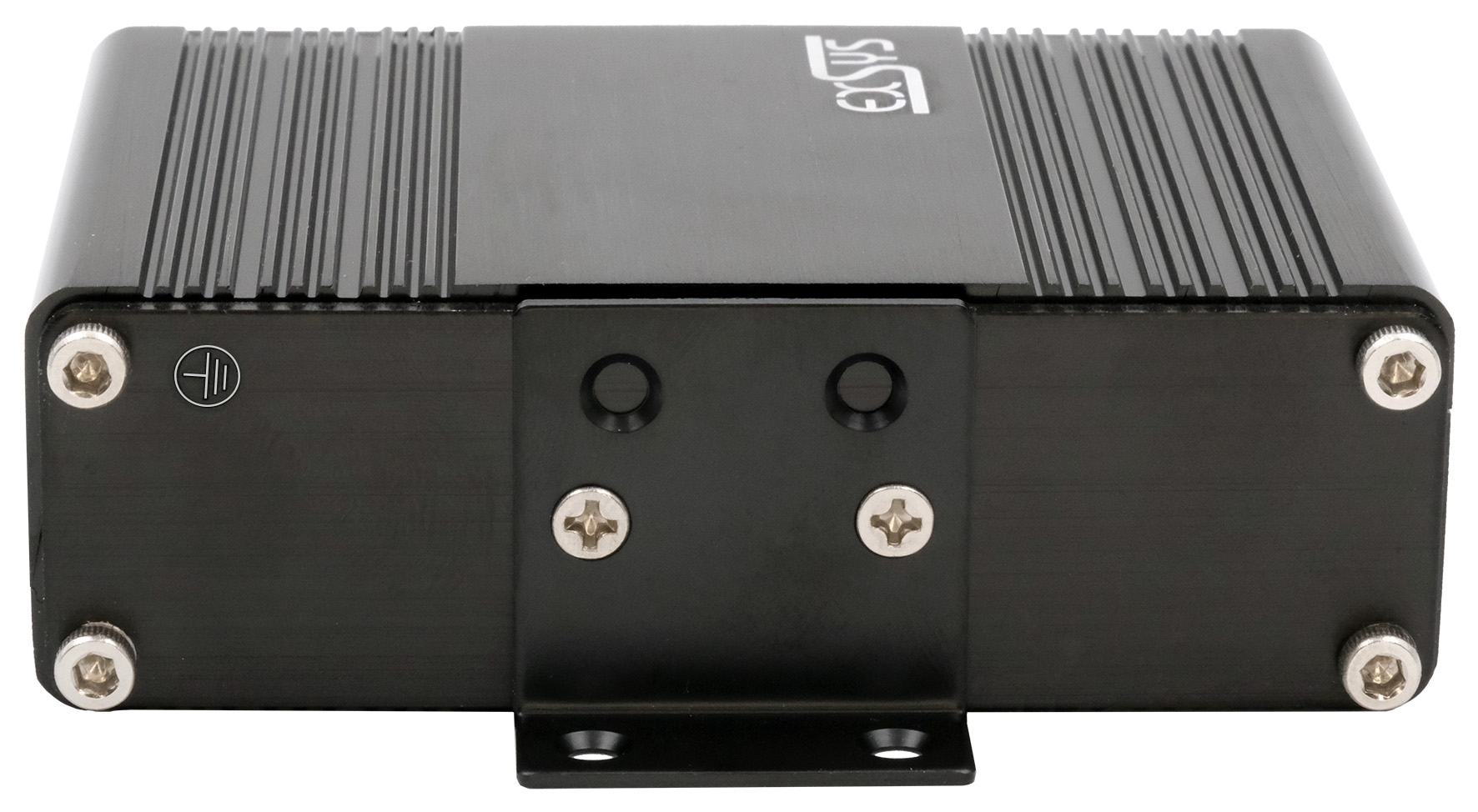

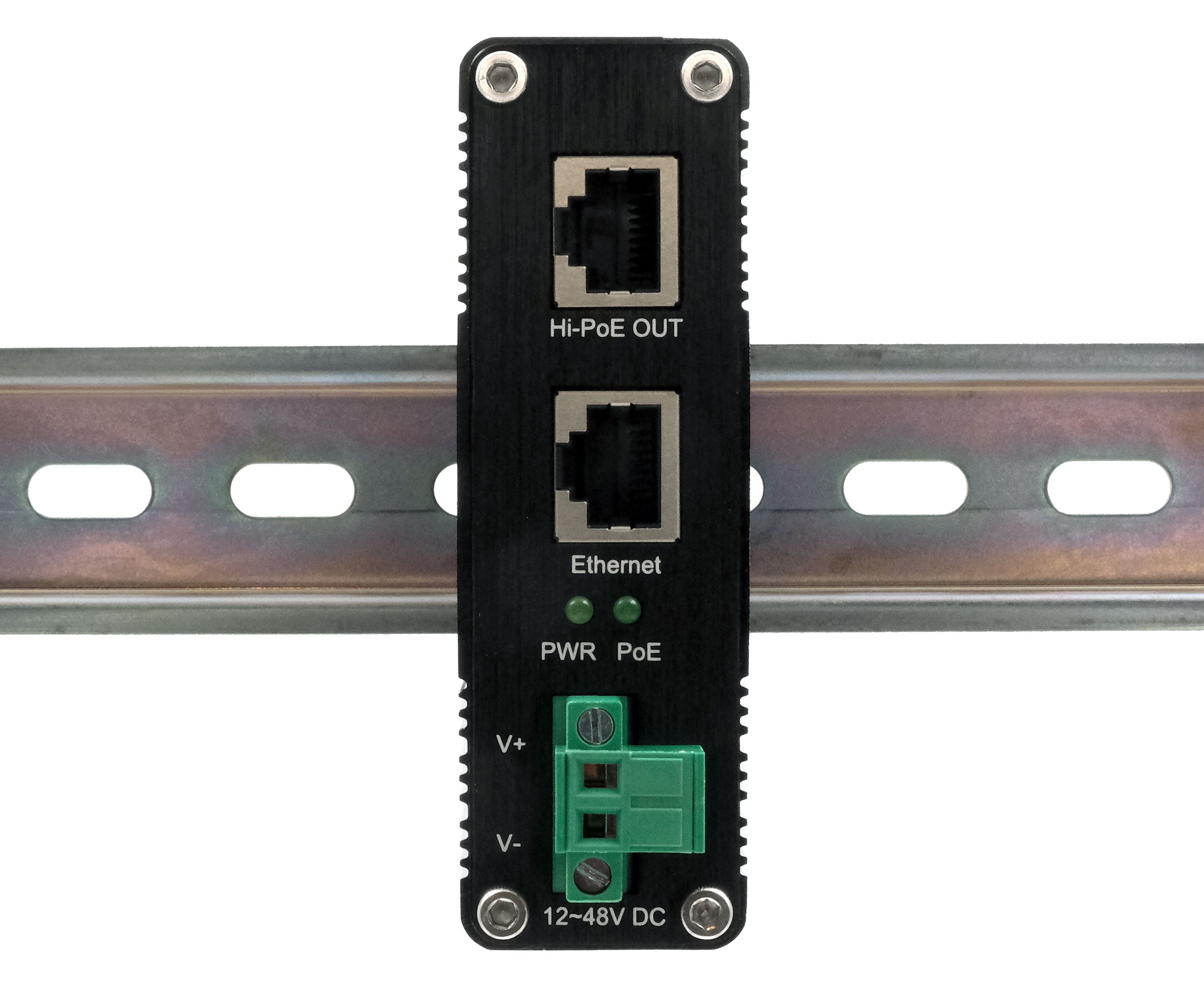

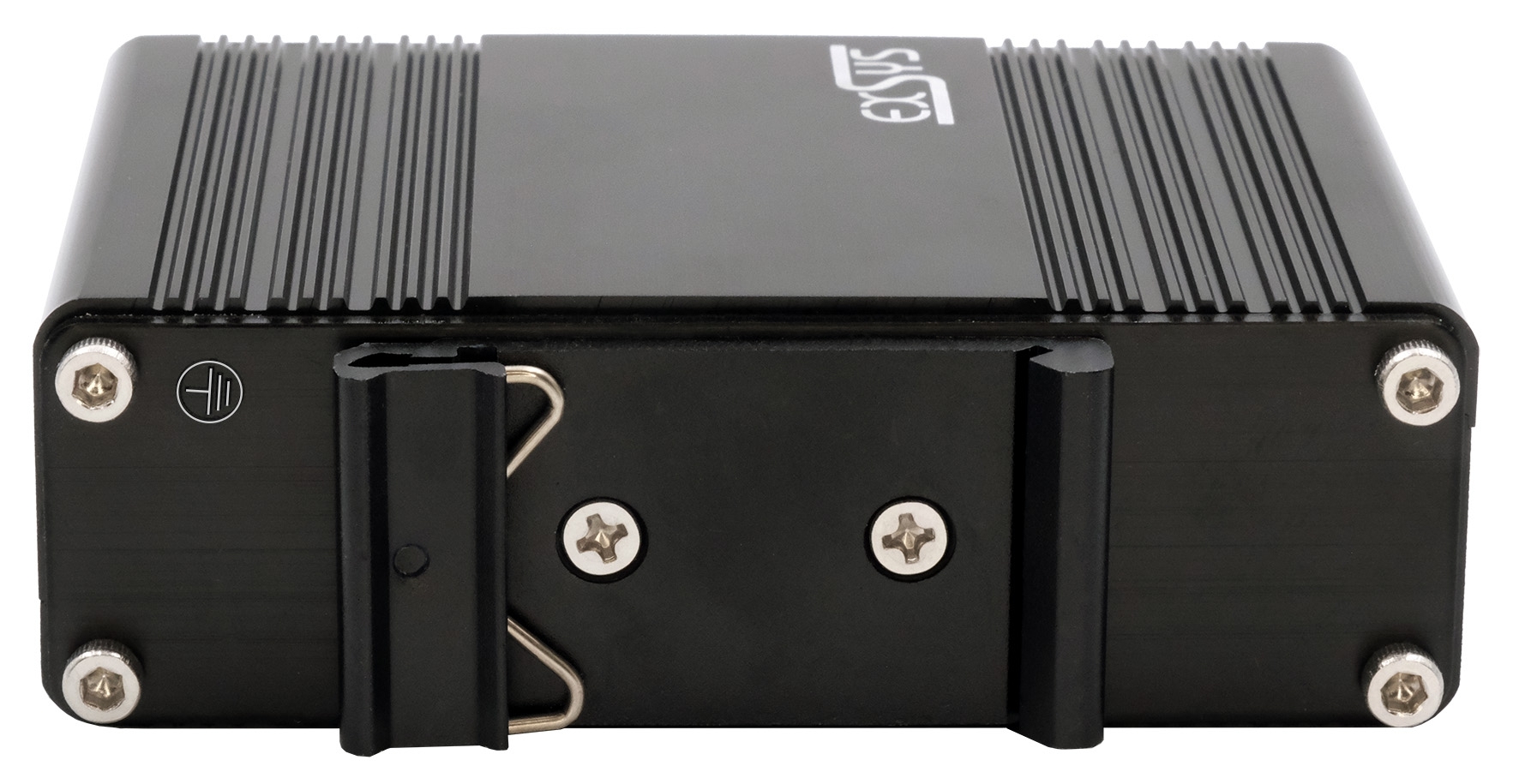

- Includes DIN-Rail Kit and wall mounting bracket
- Extended operating temperature range from -40°C to +80°C

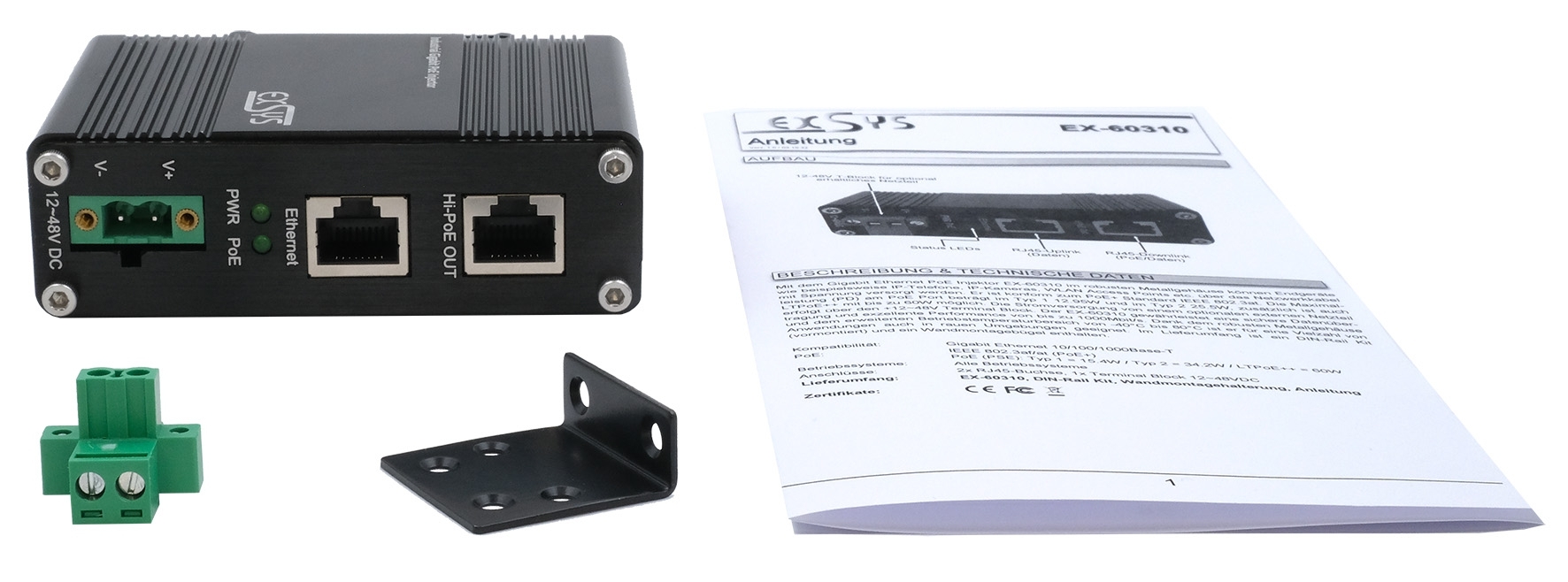

Packaging contents:
EX-60310, DIN-Rail Kit (pre-assembled), Wallmount Kit, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 2 |
| PoE Budget: | 60W |
| Power connection: | TB 12-48V |
| Power over Ethernet: | Yes |
| Temperature range: | -40°C to +80°C |
