PoE++ Gigabit Injector 60W, metal housing
Product number:
EX-6008POE
GTIN/EAN:
4718359600838
PoE++ Gigabit Injector 60W, metal housing

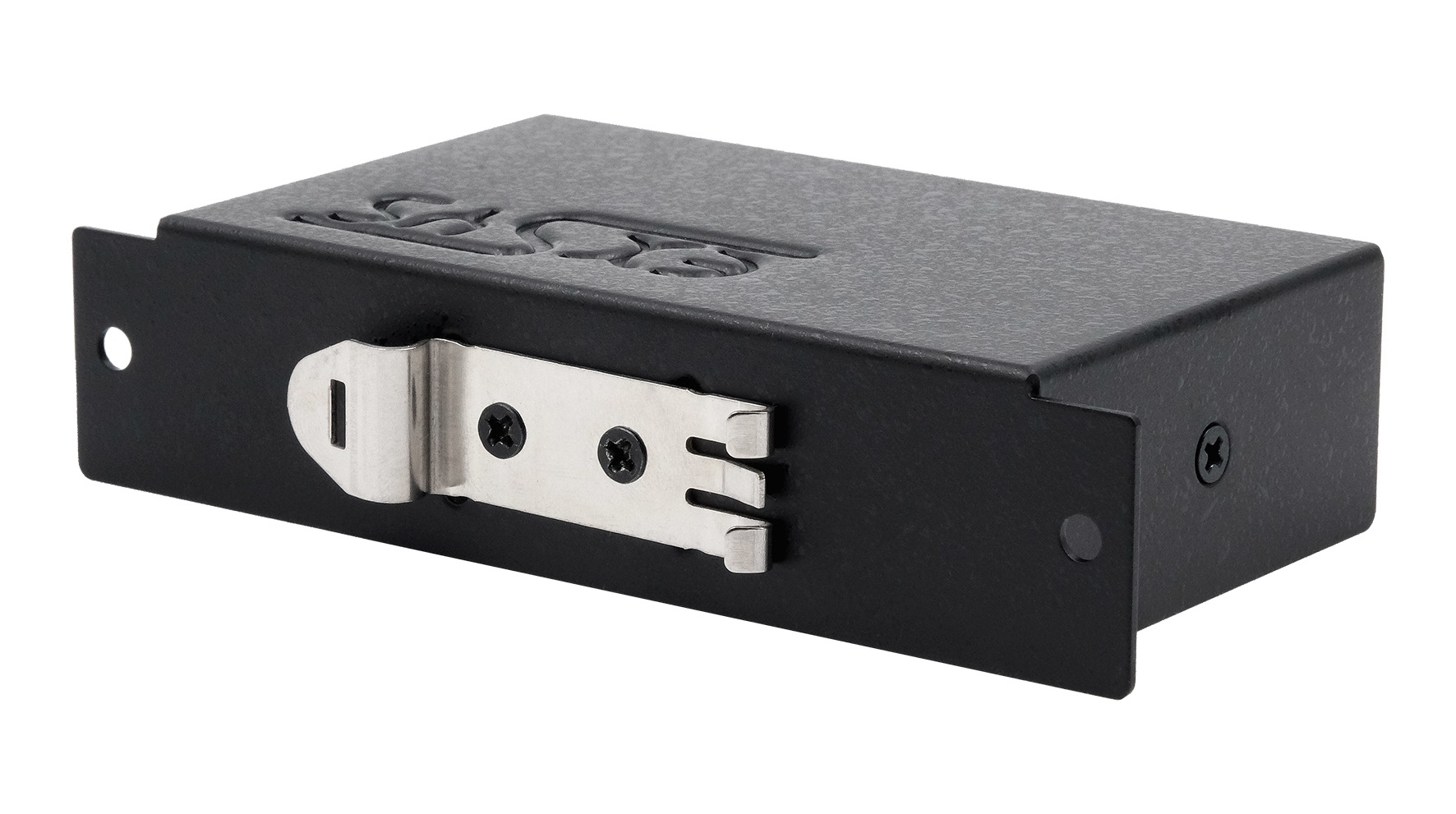

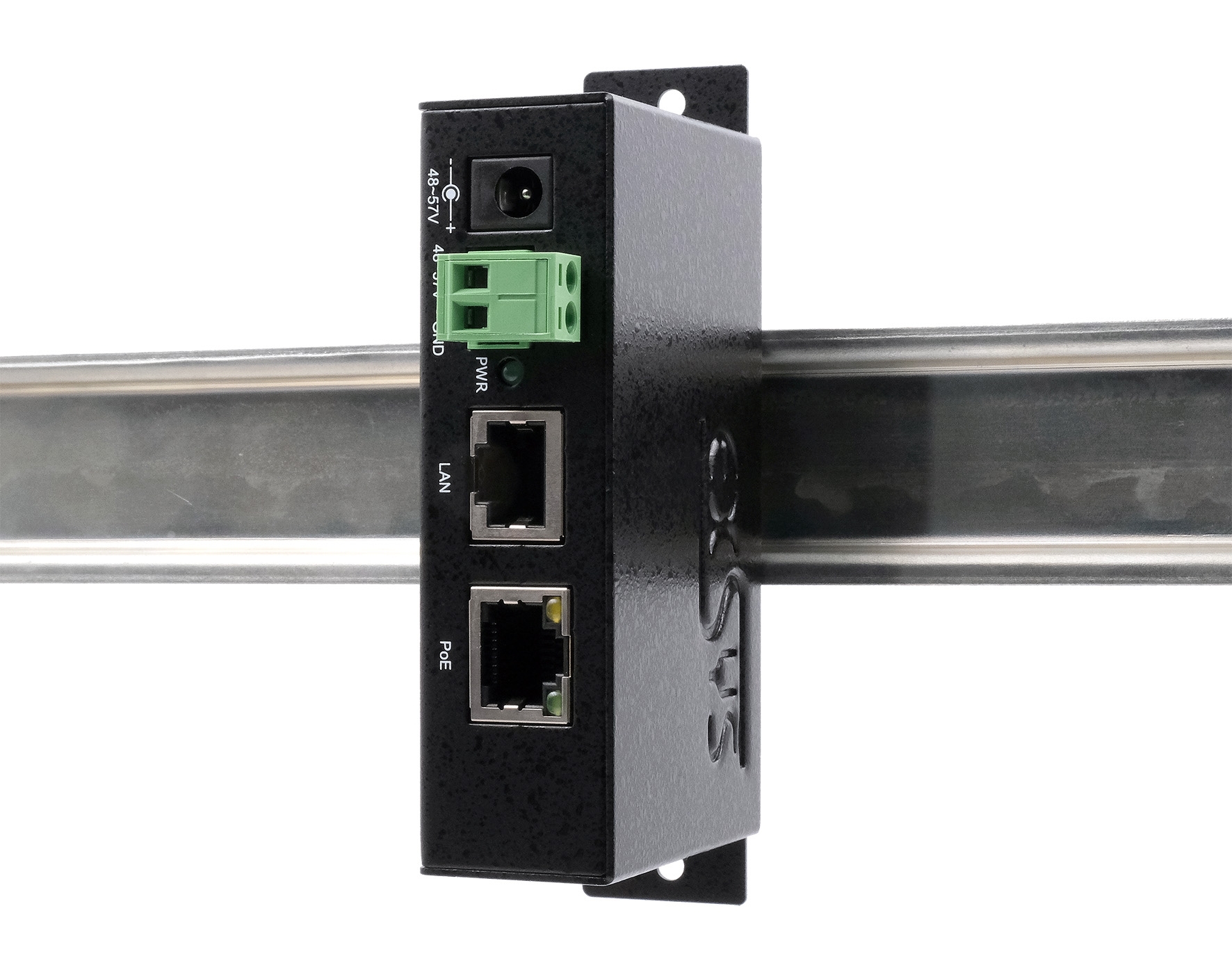

The Gigabit Ethernet PoE Injector EX-6008POE in a robust metal housing allows PoE enabled end devices such as IP telephones, IP cameras, WLAN access points, etc. to be powered via the network cable. It supports the PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) and provides a maximum power output of up to 60W at the PoE port. It is powered via the supplied power supply or the +48~57V terminal block. The EX-6008POE guarantees secure data transmission and excellent performance of up to 1000 Mbps. The compact and robust metal housing can be mounted directly on the wall or on a 35mm DIN rail using the supplied DIN-Rail kit.
- Provides power to remote network devices
- 10/100/1000Base-T Gigabit Ethernet
- Fully IEEE 802.3af/at/bt Power Over Ethernet (PoE) compliant
- Maximum power delivered:
- 802.3af, Type 1: 15.40W (PSE), 12.95W (PD)
- 802.3at, Type 2: 30.00W (PSE), 25.50W (PD)
- 802.3bt, Type 3: 60.00W (PSE), 51.00W (PD)
- Plug and play, no configuration and installation required
- LED status indicators for power supply and PoE
- Power Input: 48-57V (DC-Jack or Terminal Block)
- Rugged, compact metal housing
- Includes DIN-Rail Kit

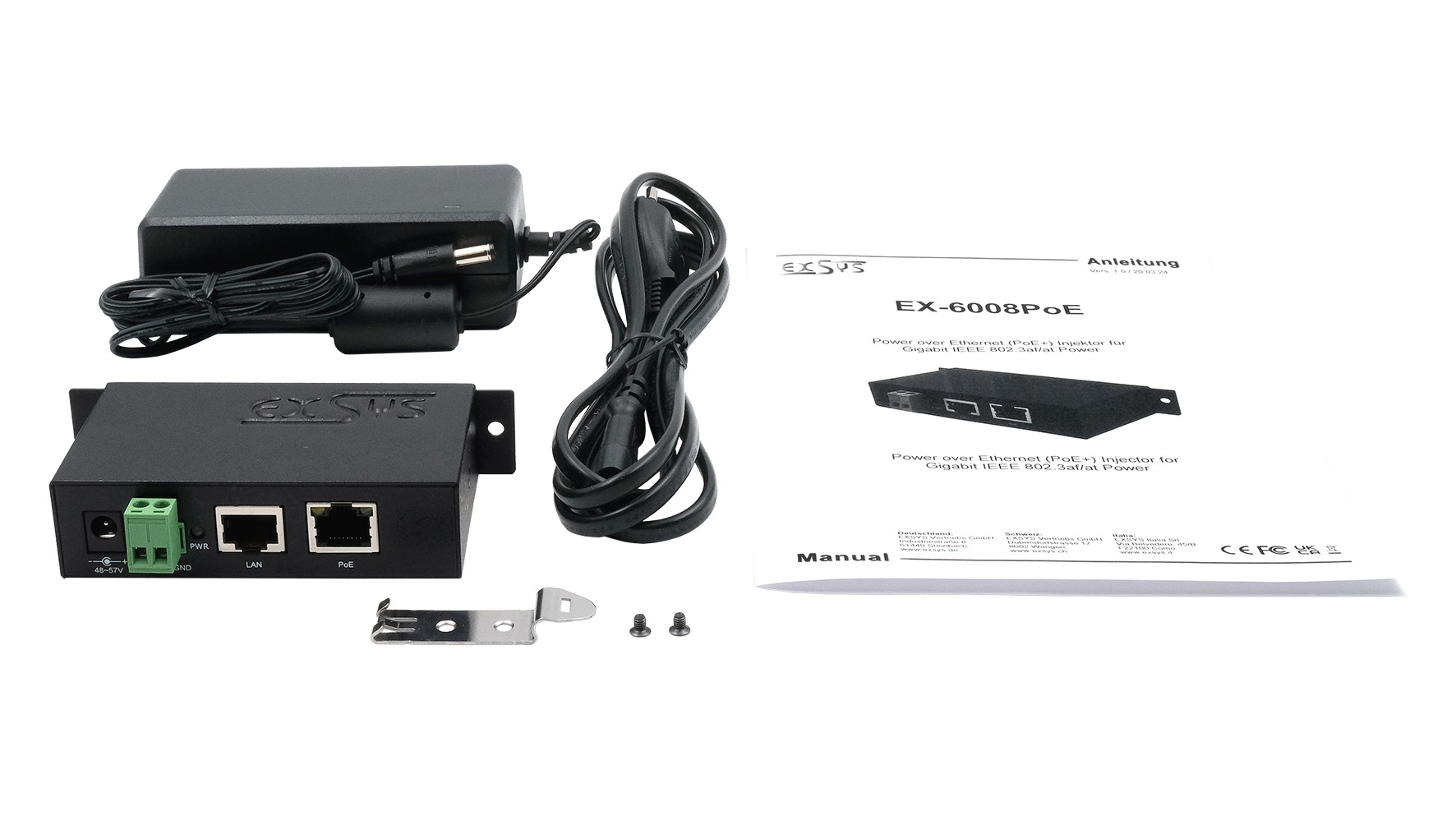

Package contents:
EX-6008PoE, Power Supply 56V/1.17A, DIN-Rail Kit, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 2 |
| PoE Budget: | 60W |
| Power connection: | DC Jack & TB 48-57V |
| Power over Ethernet: | Yes |
| Temperature range: | -20°C to +60°C |
