PoE++ Gigabit Injector 90W, metal housing
Product number:
EX-6009POE
GTIN/EAN:
4718359600937
PoE++ Gigabit Injector 90W, metal housing

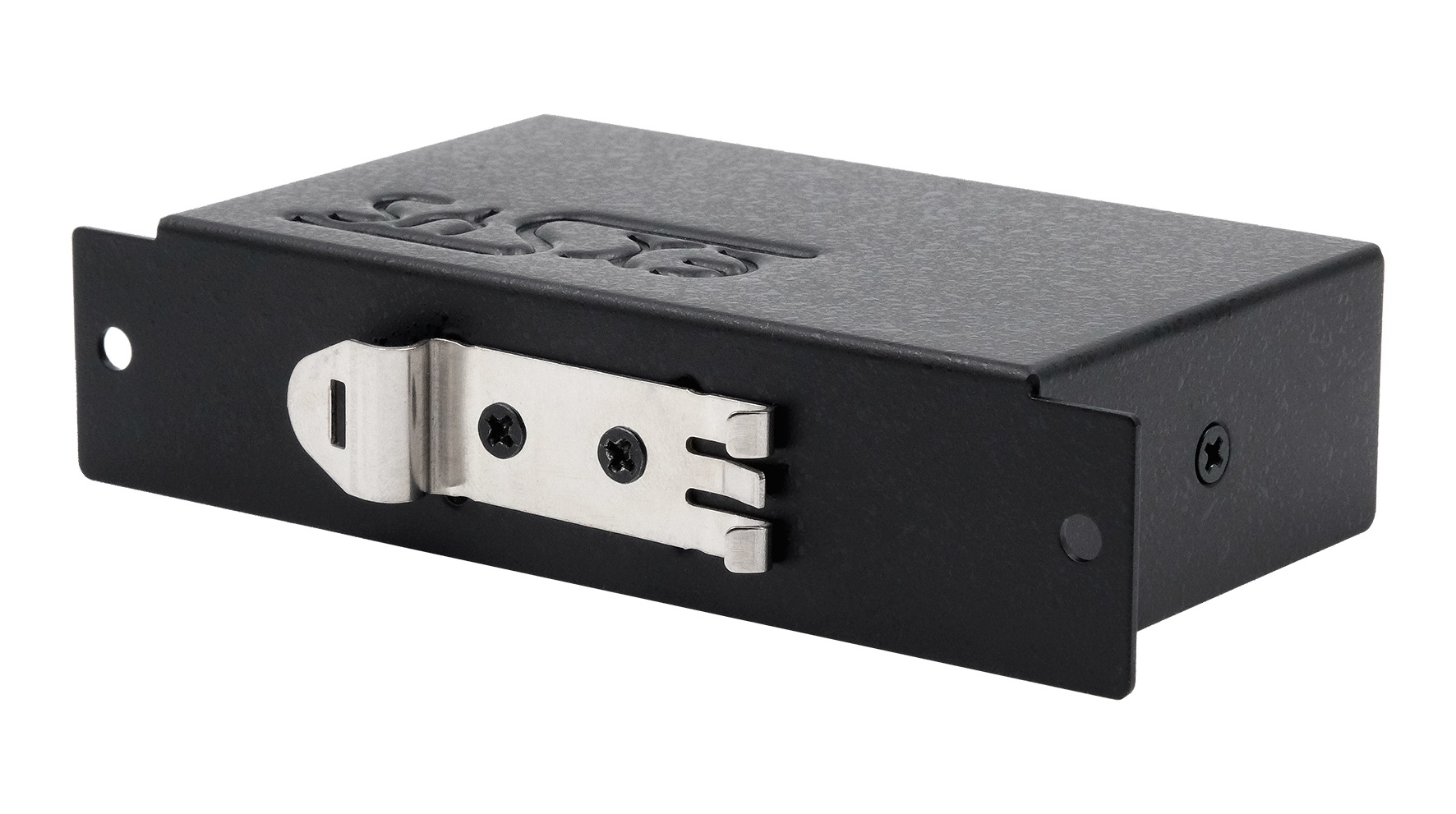

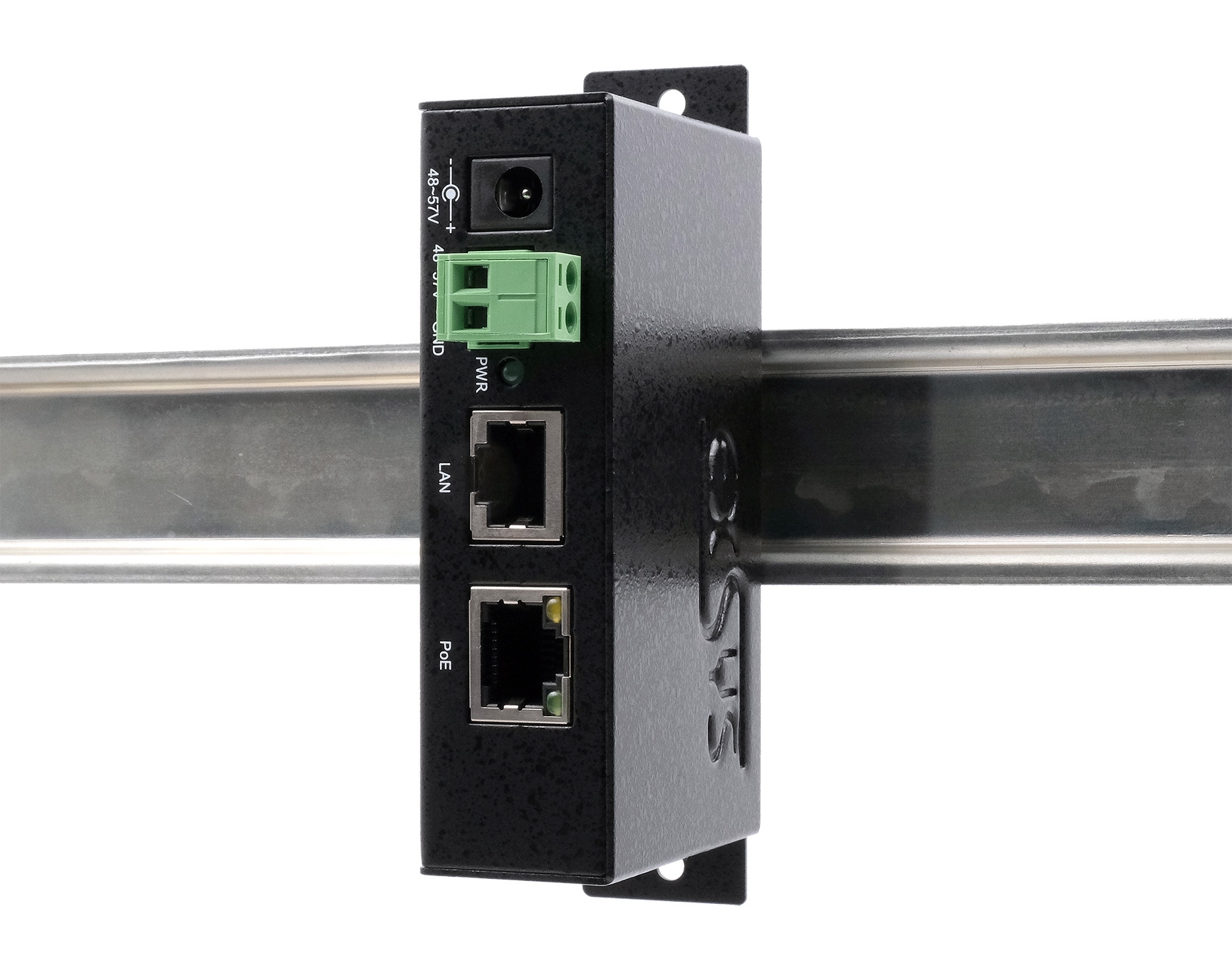

The Gigabit Ethernet PoE Injector EX-6009POE in a robust metal housing allows PoE enabled end devices such as IP telephones, IP cameras, WLAN access points, etc. to be powered via the network cable. It supports the PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) and provides a maximum power output of up to 90W at the PoE port. It is powered via the supplied power supply or the +48~57V terminal block. The EX-6009POE guarantees secure data transmission and excellent performance of up to 1000 Mbps. The compact and robust metal housing can be mounted directly on the wall or on a 35mm DIN rail using the supplied DIN-Rail kit.
- Provides power to remote network devices
- 10/100/1000Base-T Gigabit Ethernet
- Fully IEEE 802.3af/at/bt Power Over Ethernet (PoE) compliant
- Maximum power delivered:
- 802.3af, Type 1: 15.40W (PSE), 12.95W (PD)
- 802.3at, Type 2: 30.00W (PSE), 25.50W (PD)
- 802.3bt, Type 3: 60.00W (PSE), 51.00W (PD)
- 802.3bt, Type 4: 90.00W (PSE), 71.00W (PD)
- Plug and play, no configuration and installation required
- LED status indicators for power supply and PoE
- Power Input: 48-57V (DC-Jack or Terminal Block)
- Rugged, compact metal housing
- Includes DIN-Rail Kit

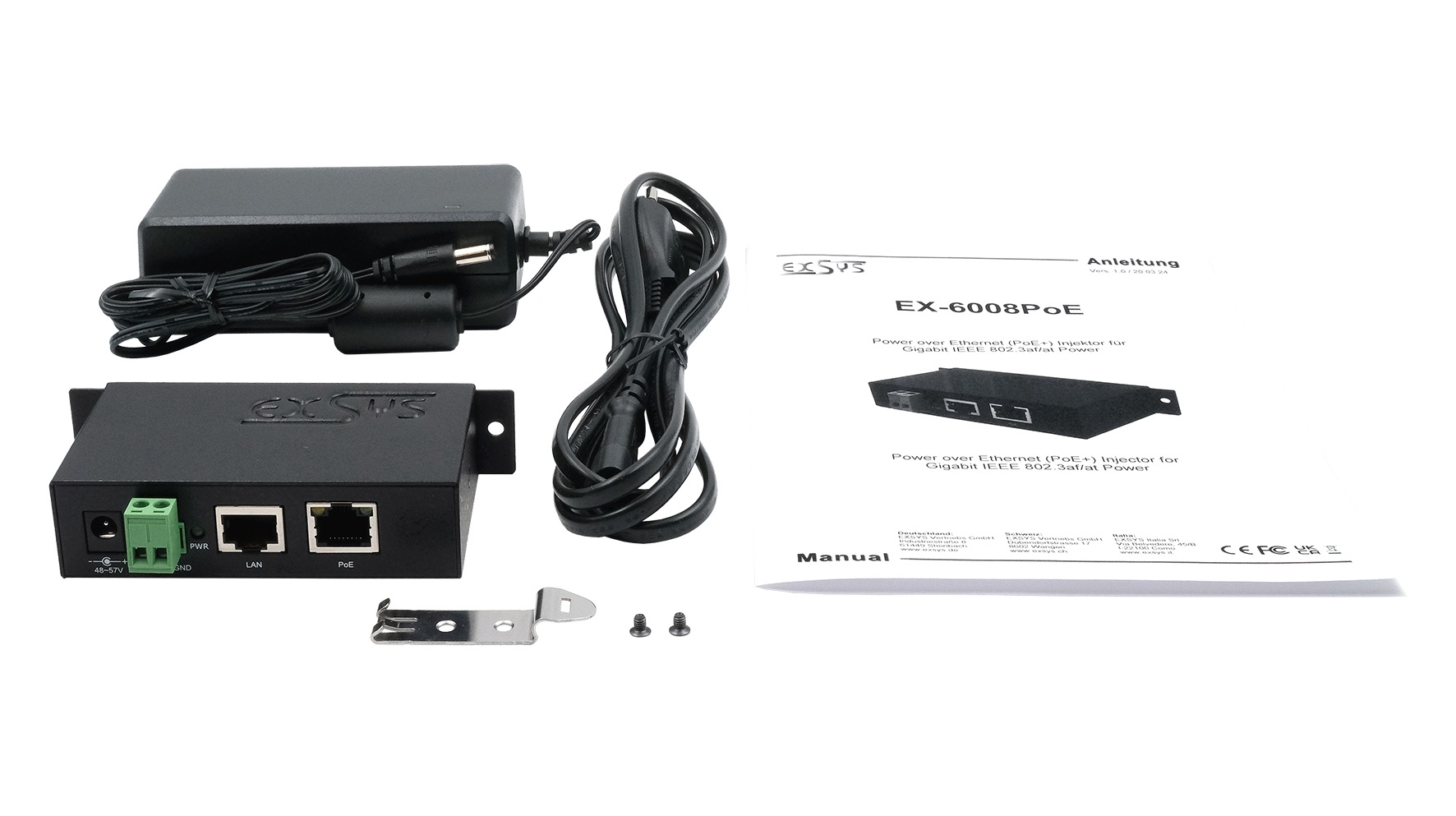

Packaging contents:
EX-6009PoE, Power Supply 56V/1.6A, DIN-Rail Kit, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 2 |
| PoE Budget: | 90W |
| Power connection: | DC Jack & TB 48-57V |
| Power over Ethernet: | Yes |
| Temperature range: | -20°C to +60°C |
