PoE++ Gigabit Splitter 3-36VDC/50W, -40°C to +75°C

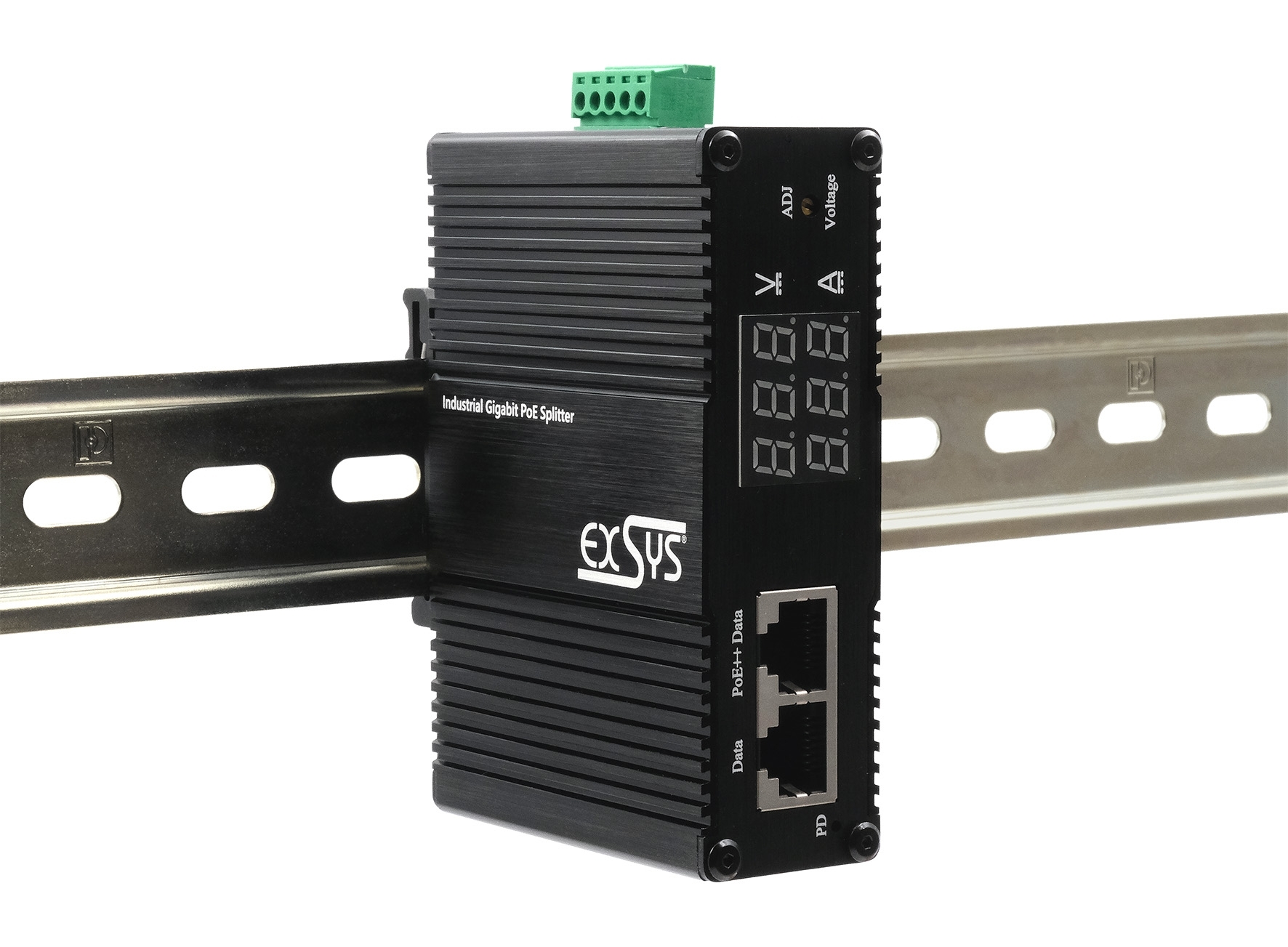

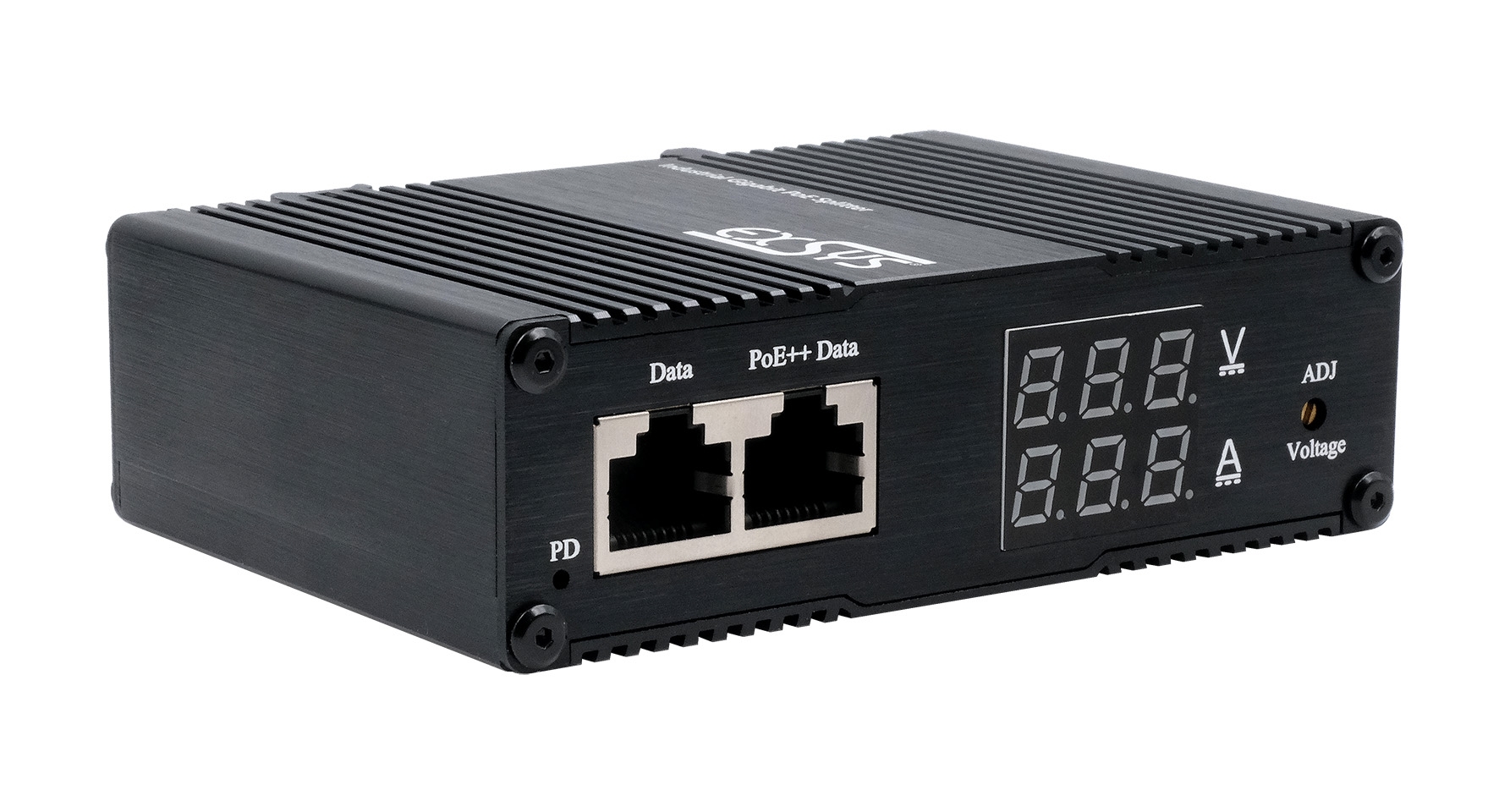

The Gigabit Ethernet PoE++ splitter EX-60327 splits the signal from a PoE server (PSE) into data and power supply and outputs both signals separately. This means that non-PoE-capable Ethernet end devices (IP cameras, WLAN access points, etc.) can also be connected to a PoE switch or other PSE and use its power supply. It complies with the PoE++ standard IEEE 802.3bt. The voltage at the terminal block for supplying the end device can be set individually between 3VDC and 36VDC. The maximum output power is 50W at max. 10A. The EX-60327's robust metal case and extended operating temperature range of -40°C to 75°C make it suitable for a wide range of applications, even in harsh environments. Supplied with a pre-mounted DIN-Rail kit and a wall mounting bracket.
- Separates data and power from a PoE signal to supply non-PoE-capable Ethernet end devices
- Reduces system cabling, improves system stability/security and reduces maintenance costs

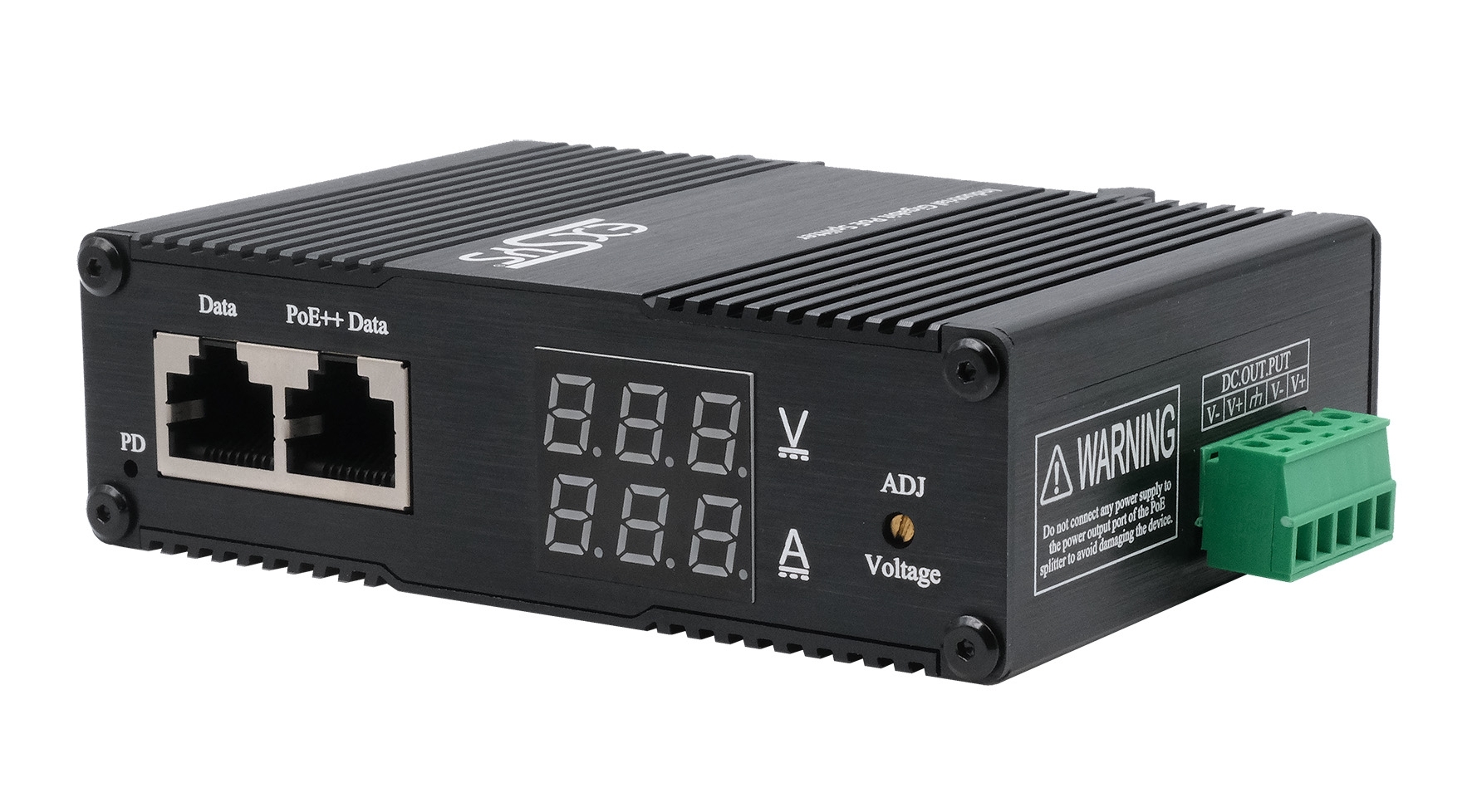

- Output voltage adjustable at the terminal block: 3-36VDC max. 50W/10A
- Fully compliant with IEEE 802.3af/at/bt Power over Ethernet (PoE), Mode/Alternative A and B
- 10/100/1000Base-T Gigabit Ethernet
- Plug and play, no configuration or installation required

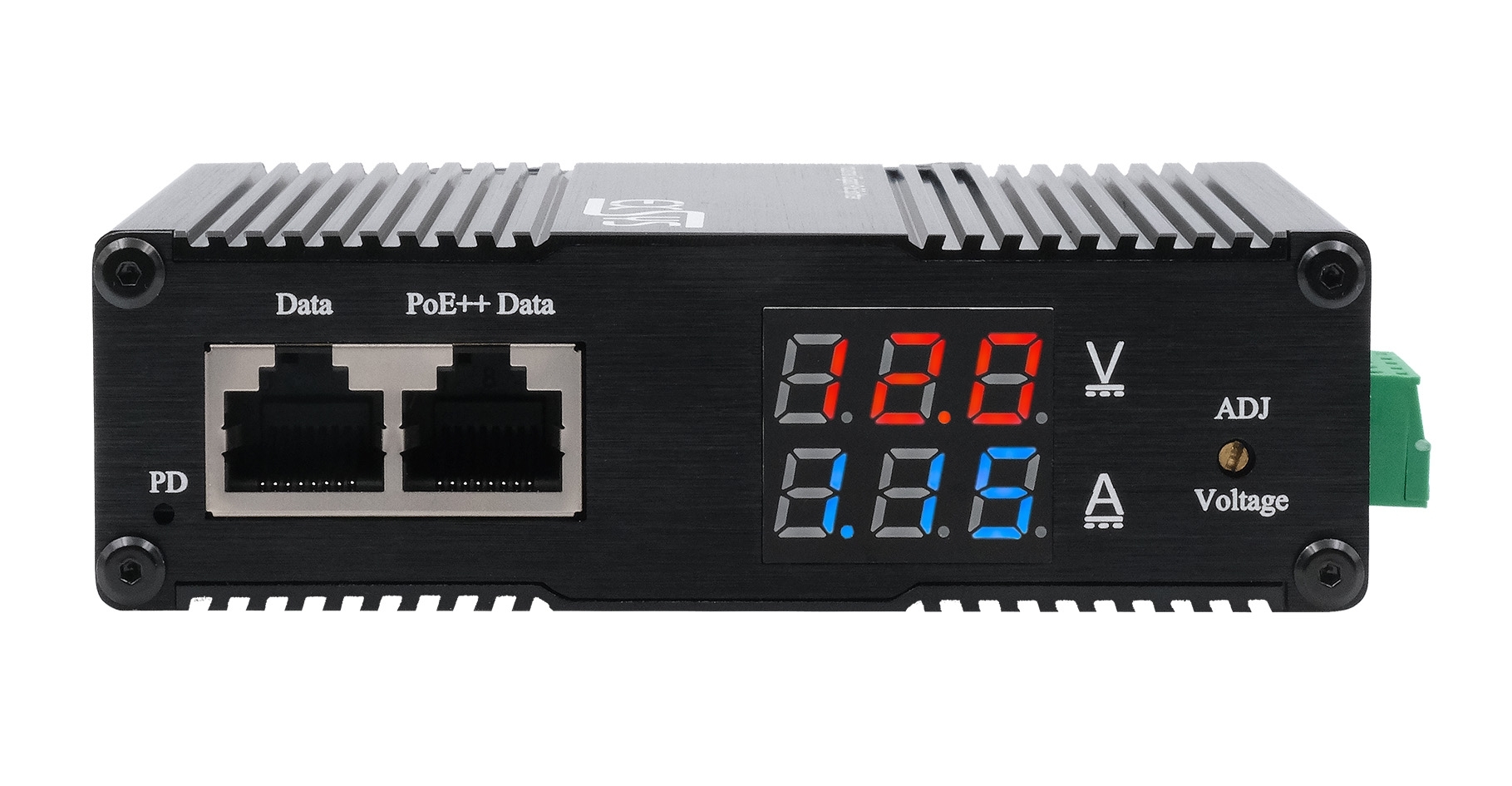

- Digital real-time display of output voltage and current
- Rugged, compact metal housing, IP40
- Includes DIN-Rail kit and wall mounting bracket
- Extended operating temperature range from -40°C to +75°C

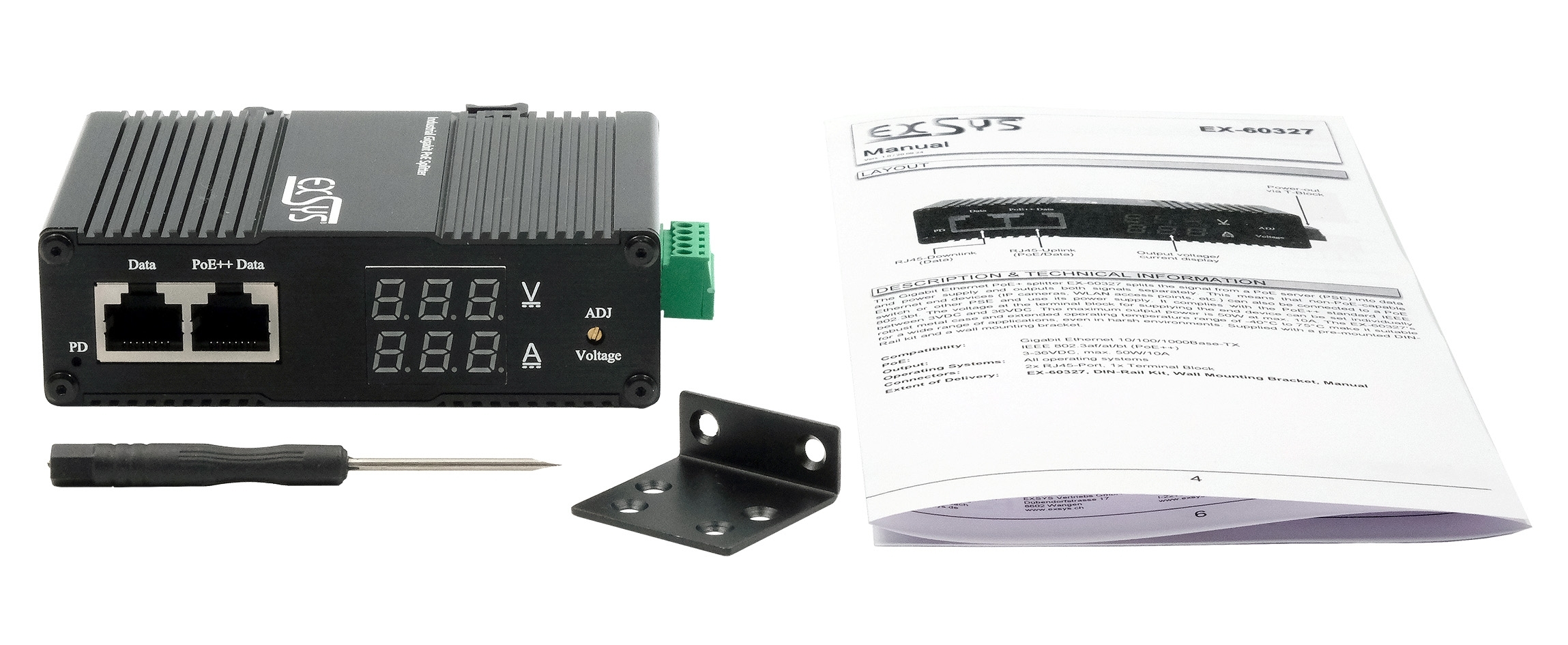

Scope of delivery:
EX-60327, DIN rail kit (pre-assembled), wall mounting kit, manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 2 |
| Power connection: | TB 3-36V/50W |
| Power over Ethernet: | Yes (PD) |
| Temperature range: | -40°C to +75°C |
