Quad 1 Gigabit Power over Ethernet PCIe (x1) Card (Realtek RTL811
The EX-6074PoE-2 is a fast 1 Gigabit Ethernet card with four RJ45 ports, designed for the PCIe (x1) bus. The EX-6074PoE-2 supports Power over Ethernet and a data transfer rate of up to 1000 Mbit per second. The PCI Express bus optimally supports the performance of the fast Realtek chipset, guaranteeing secure data transfer and excellent performance. Each port has its own Realtek chipset, allowing larger amounts of data to be transferred faster and more efficiently across the network. The EX-6074PoE-2 supports half and full duplex as well as NWay auto-negotation to automatically adapt to the network speed (10/100/1000 Mbps). Furthermore the card is equipped with Auto-MDI/MDI-X. It also offers very extensive support of various operating systems. Any end devices that support Power over Ethernet can be connected to the EX-6074PoE-2 without additional PoE-Switches or PoE-Injectors.
- Support 10/100/1000 Base-T Ethernet standards
- Fully IEEE 802.3af compliant PoE (PSE) type 1 = 15.40W and
IEEE802.3at PoE+ (PSE) type 2 = 34.20W - Maximum Power Delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W
- Support Auto-MDI/MDI-X Auto (for Crossover cable)
- Support Jumbo Frame up to 9Kbytes, Pair Swap/Polarity/Skew Correction
- Wake-on-LAN and Remote Wake-up
- Support Full Duplex Flow Control (IEEE 802.3x)
- Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding
- Microsoft NDIS 5 Checksum Offload (IP, TCP, UDP), supports PCI Message Signaled Interrupt (MSI)
- 48KB Buffer Transmit/Receiver Chip
- Activity LED to check the data transfer
- Chipset: 4x Realtek RTL8111H

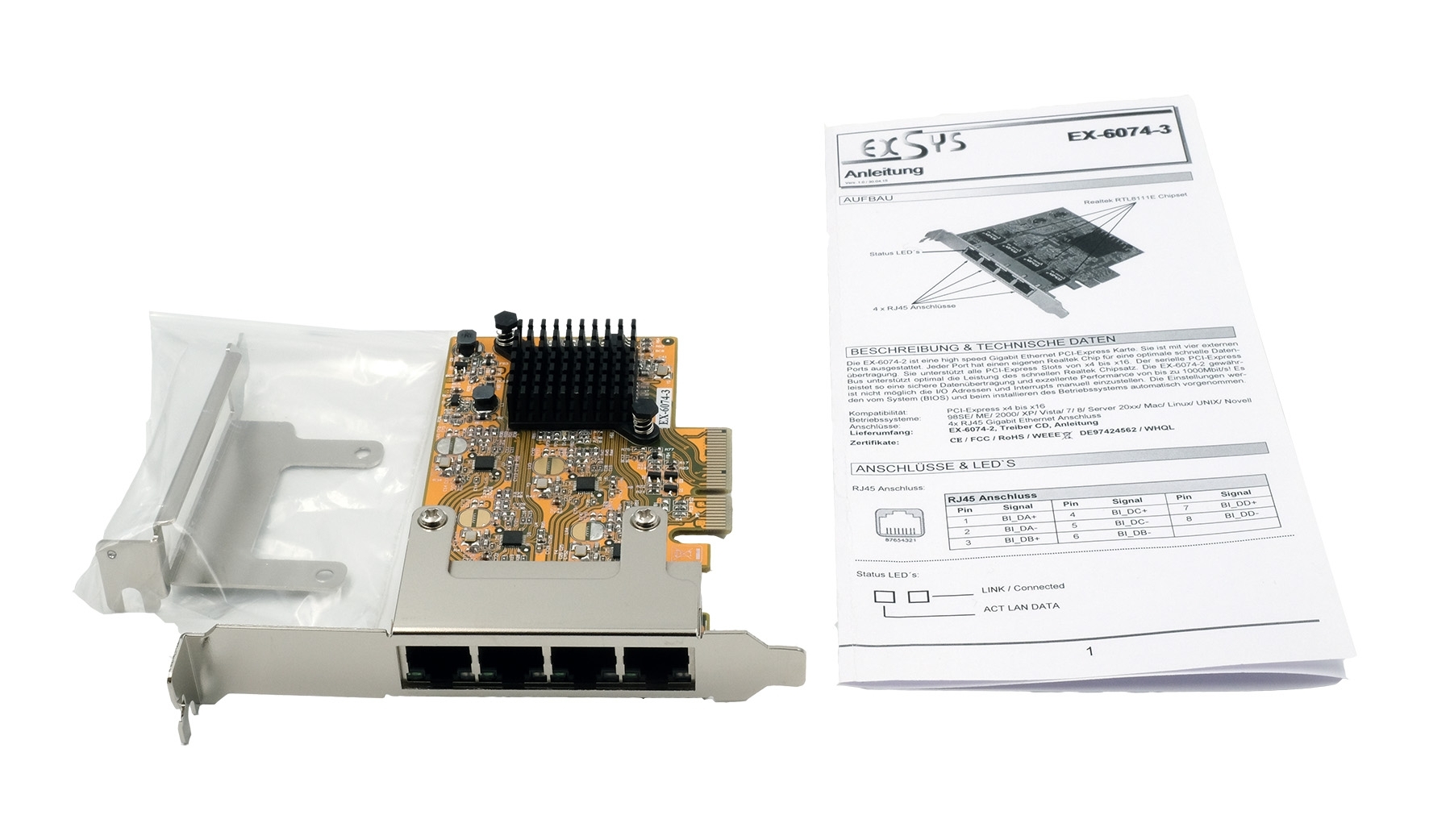

Packaging Contents:
EX-6074PoE-2, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | RJ45 |
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | Standard Profile |
| Number of ports: | 4 |
| PoE Budget: | 120W |
| Power connection: | 15-Pin SATA & 4-Pin Molex |
| Power over Ethernet: | Yes |
