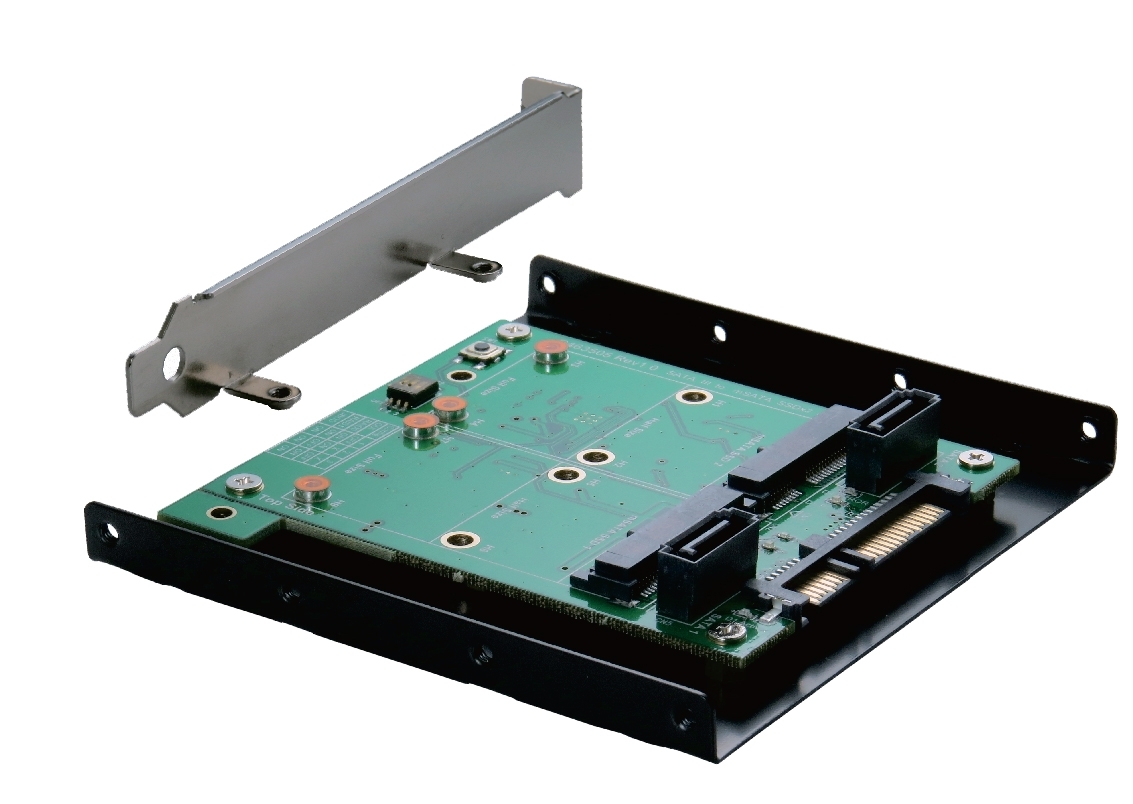

SATA3 to 2x mSATA SSD & SATA 2 with 2.5-inch metal frame, RAID 0/1
Product number:
EX-3684
GTIN/EAN:
4718359036842
SATA3 to 2x mSATA SSD & SATA 2 with 2.5-inch metal frame, RAID 0/1
The EX-3684 converter can used for a replacement of a 2.5-inch hard drive or SSD. For connect the EX-3684 need a SATA 3 connector from the mainboard or from a SATA 3 controller. You can use the mSATA module: Half Size and Full Size. In the same time it’s possible to connect two other hard drive or SSD to the two SATA 2 ports. The EX-3684 support RAID 0 / 1 and JBOD. Included it’s a bracket for install vertical in the PC.
- Built-in ASM1092R high performance processor
- Supports Half Size or Full Size module
- 100% compatible with 2.5-inch SATA drive mechanical specification
- Support RAID mode: RAID 0 (fast) / RAID 1 (safe) and JBOD (volume)
- RAID mode switch by hardware strapping or GUI controller
- 22 pin SATA connector (signal and power)
- Support SATA 3 Revision 3.2
- Transparent to the operating system and don’t need driver
- Additional it’s include a bracket for install on the backside from the PC
Packaging contents:
EX-3684, 4x screws for mounting the 2.5" frame, 1x bracket, manual
| Bus system: | SATA3 |
|---|---|
| Connections: | SATA |
| Interface: | mSATA |
| Mounting Type: | 2.5" mounting frame |
| Number of ports: | 2 |
| mSATA modules: | Half and Full Size |
