USB 2.0 to 8x serial RS-232 ports Metal box (FTDI Chipset)
Product number:
EX-13078HM
GTIN/EAN:
4718359130786
USB 2.0 to 8x serial RS-232 ports Metal box (FTDI Chipset)

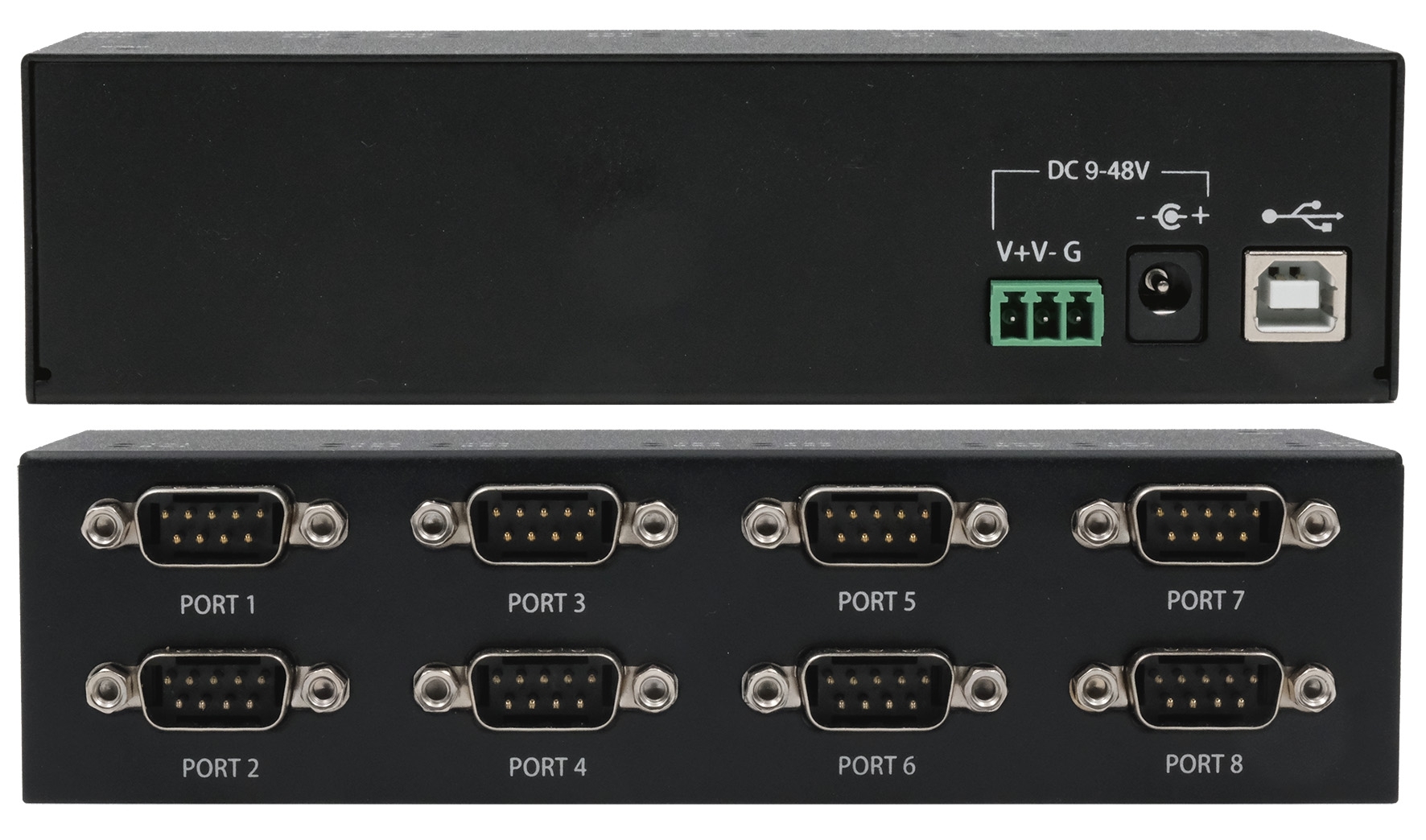

The EX-13078HM USB 2.0 to Serial RS-232 in a metal case provides eight RS-232 high performance UART 16C550 outputs. It is designed to add eight more serial outputs in a rugged metal enclosure for desktop computer or notebook via USB 2.0 bus. The EX-13078HM has LED indicators for data transmission on each port and comes with two brackets for wall mounting and a DIN-Rail Kit for mounting on a carrier rail in a 19" rack. A terminal block and DC Jack are available for optional power supply.
- Interface: RS-232 V.24
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses and Interrupt: Set from the operating system
- Data Bits: 7 und 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
- Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power from the USB Bus (Bus Power)
- Terminal block 9~48VDC and DC socket for optional power supply
- LED Indicators for TX and RX activity
- Chipset: FTDI

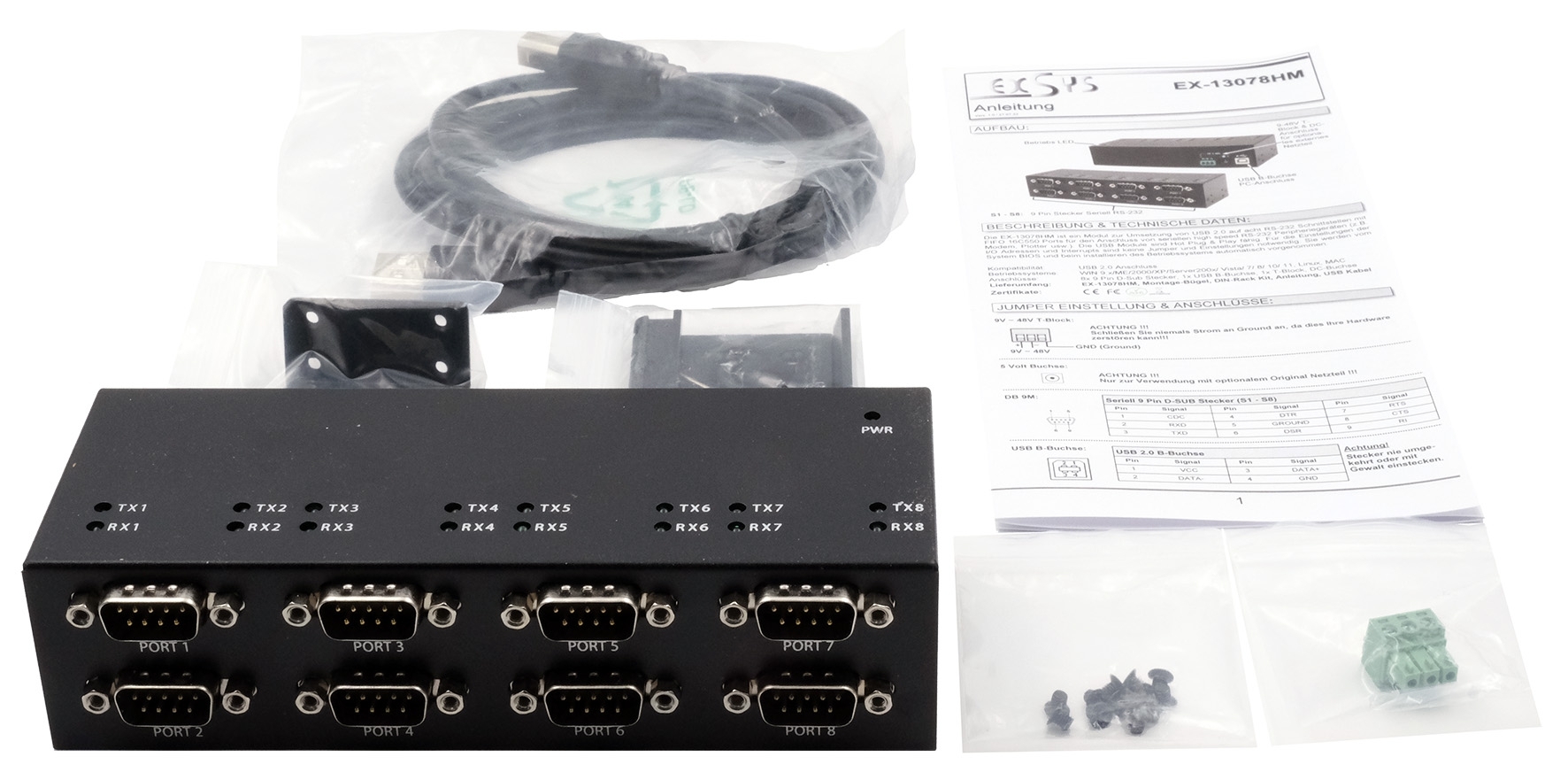

Packaging contents:
EX-13078HM, USB cable, DIN-Rail Kit, Wallmount Kit, Terminal Block, Manual
| Cable length: | 1.8m |
|---|---|
| Colour: | black |
| Housing: | Metal |
| Inputs: | USB-B socket |
| Interface: | RS-232 |
| Mounting Type: | Desktop / DIN-Rail |
| Number of ports: | 8 |
| Outputs: | 9-pin plug |
| Power connection: | Bus power |
| Temperature range: | 0°C to +55°C |
Skip product gallery
CHF 20.90*
CHF 20.90*
accessories
EX-6989
Plug-In power supply 12V/3A (5.5mm DC Jack)
Power supply unit with DC jack for powering various devices. Suitable for several EXSYS products.
Output: 12V/3A, 36W
Input: 100-240VDC / 50-60Hz, 1.0A
DC jack diameter: 5.5mm outside / 2.1mm inside
Positive pole inside
EX-6970
HDR-15-12 – 15W DIN Rail Power Supply for EX-1163HM and EX-1163HMS-WT
HDR-15-12 – 15W DIN Rail Power Supply for EX-1163HM/1163HMS-WT
Output: 12V/1.25A/15W
Input: 85 ~ 264VAC
Ulta slim design with 17.5mm (1SU) width
Unversal input 85~264VAC
Plastic case, step shape
Isolation class II
Pass LPS (limited power source)
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature: -30°~+70°C)
No load power consumption <0.3W
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for building automation and control of household appliance
Over voltage category II
LED indicator for power on
