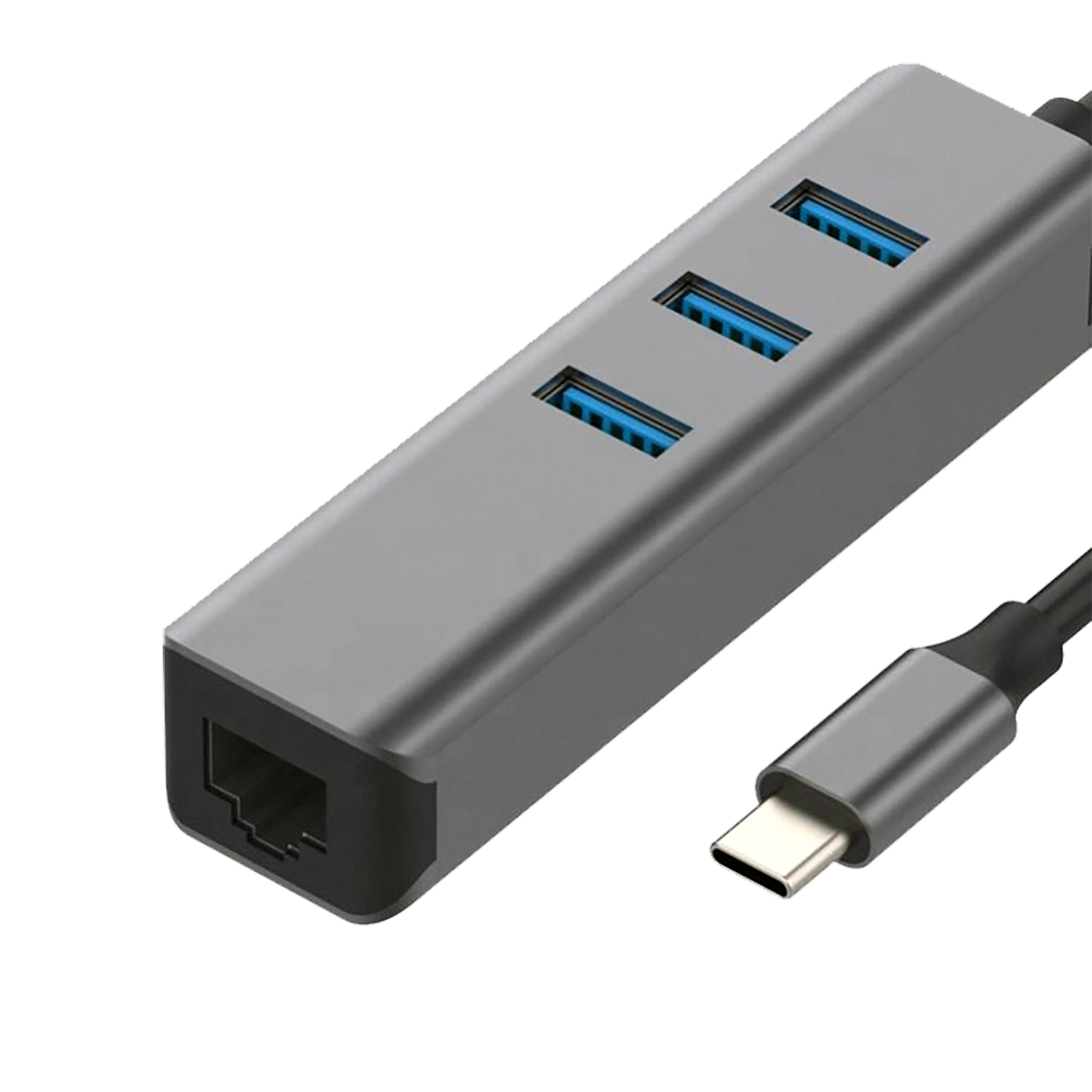

USB 3.2 Gen 1 HUB with 3x USB ports and 1x Ethernet 1Gigabit LAN (C-male)
Product number:
EX-1133-N-3
GTIN/EAN:
4718359113345
USB 3.2 Gen 1 HUB with 3x USB ports and 1x Ethernet 1Gigabit LAN (C-male)

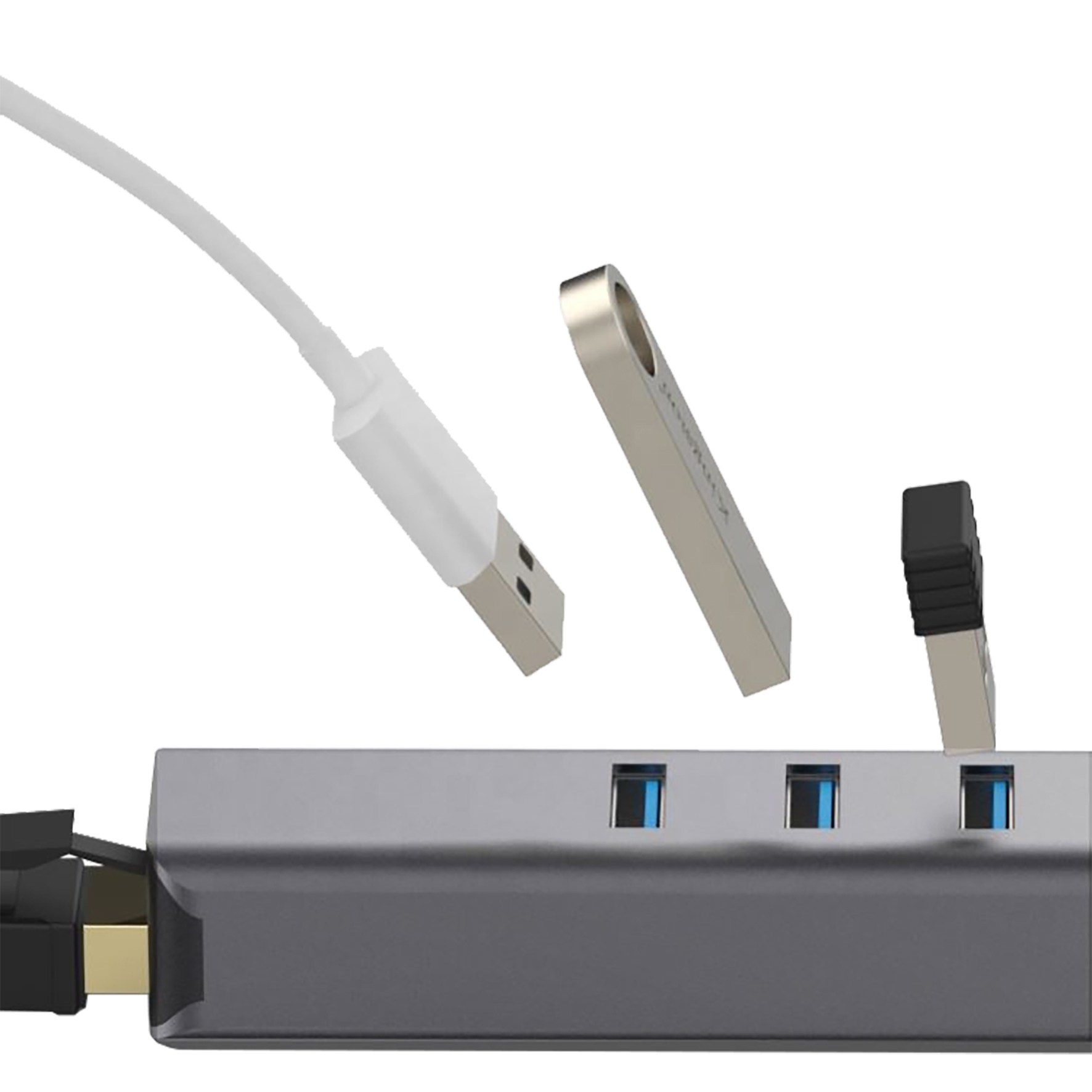

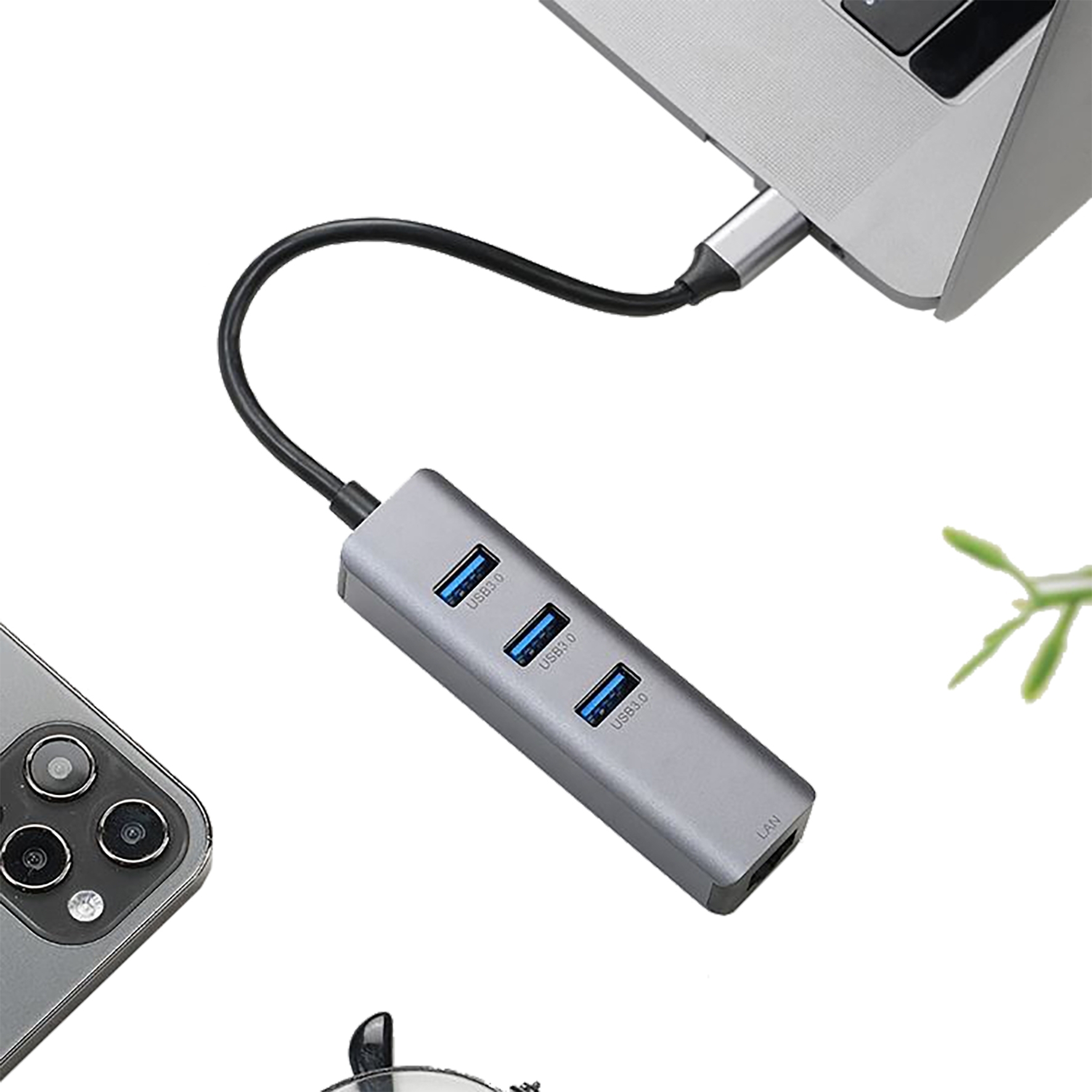

With the EX-1133-N-3, connect your notebook or desktop computer to up to three external USB 2.0 or 3.2 Gen 1 peripherals and a Gigabit LAN Ethernet network via a USB-C 3.2 Gen 1 compatible (formerly called USB 3.0) USB-C port. The EX-1133-N-3 can be installed simultaneously to an existing network card and does not require an additional power supply.
USB 3.2 Gen 1
- USB 3.2 Gen 1 HUB with three downstream ports
- Connects up to three USB peripheral devices
- Compliant with USB 3.2 Gen 1 specification 1.0
- Supports all USB 2.0 to 3.2 Gen 1 compatible devices
Ethernet 1Gigabit
- Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Supports crossover detection and auto-correction
- Supports Wake-on-LAN
Packaging contents:
EX-1133-N-3, Manual
| Application: | Standard |
|---|---|
| Cable length: | 0.2m |
| Colour: | silver |
| Data transmission: | 5Gbps |
| Housing: | Plastic |
| Inputs: | USB-C plug |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | Desktop |
| Number of ports: | 4 |
| Outputs: | 3x USB-A socket / RJ45 |
| Power connection: | Bus power |
| Temperature range: | 0°C to +55°C |
