USB 3.2 Gen 1 to mSATA RAID 0/1 with 2.5-inch metal frame (7mm)
Product number:
EX-3681
GTIN/EAN:
4718359036811

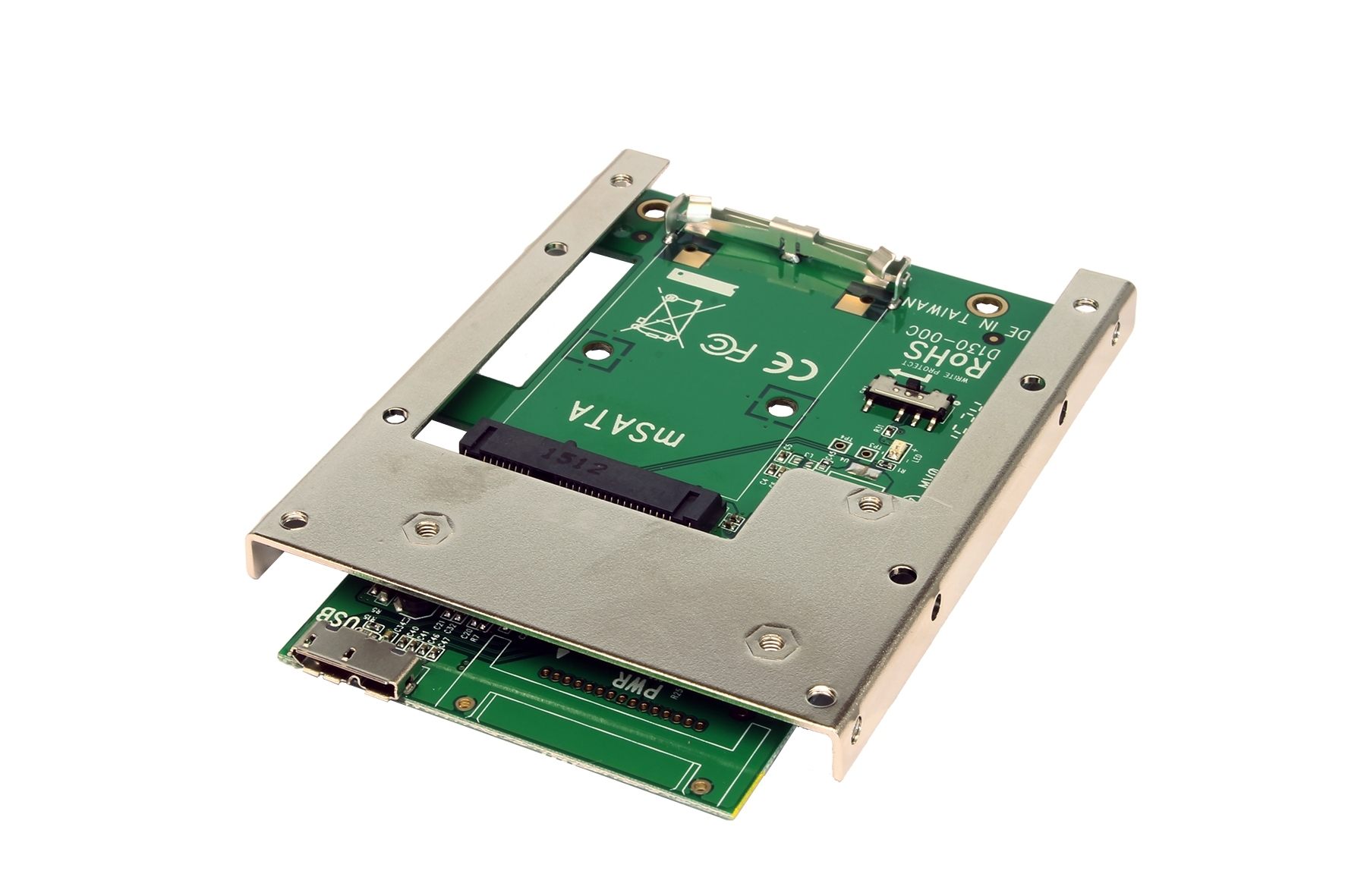

USB 3.2 Gen 1 to mSATA RAID 0/1 with 2.5-inch metal frame (7mm)
The EX-3681 converter can be used as a replacement for a 2.5" hard disk or SDD. For the connection of the EX-3681 a USB 3.0 port on the mainboard or a USB 3.0 controller is required. Half size as well as full size modules can be used. The "Write Protect" switch can be used to protect data from being overwritten. The EX-3681 comes with a standard and low profile bracket and can also be installed vertically in the PC.
- USB 3.2 Gen 1 to 6Gbps SATA 3 Hardware RAID Controller
- Converts 1x Full Size mSATA SSD to USB 3.0 - 2.5-inch case with 7mm height
- Supports one SATA 2 and SATA 3 (6Gbps) mSATA SSD
- 100% compatible with 2.5-inch SATA drive mechanical specification
- Supports USB 3.0 and 2.0 mainboard
- Supports ATA/ATAPI Packet Command Set
- Supports ATA/ATAPI LBA 48 Addressing Mode
- Compliant with Universal Serial Bus 3.0 specification Rev. 1.0
- Write Protect switch can prevent the data writing to mSATA SSD
- Power from the USB 3.0 Micro-B 5V Bus
- Transparent to the operating system, no driver needed
Packaging contents:
EX-3681, 4x screws for mounting the 2.5" frame, Low Profile bracket, manual
| Bus system: | USB 3.2 Gen 2x1 |
|---|---|
| Connections: | Micro-USB socket |
| Interface: | mSATA |
| Mounting Type: | 2.5" mounting frame |
| Number of ports: | 2 |
| mSATA modules: | Full Size |
