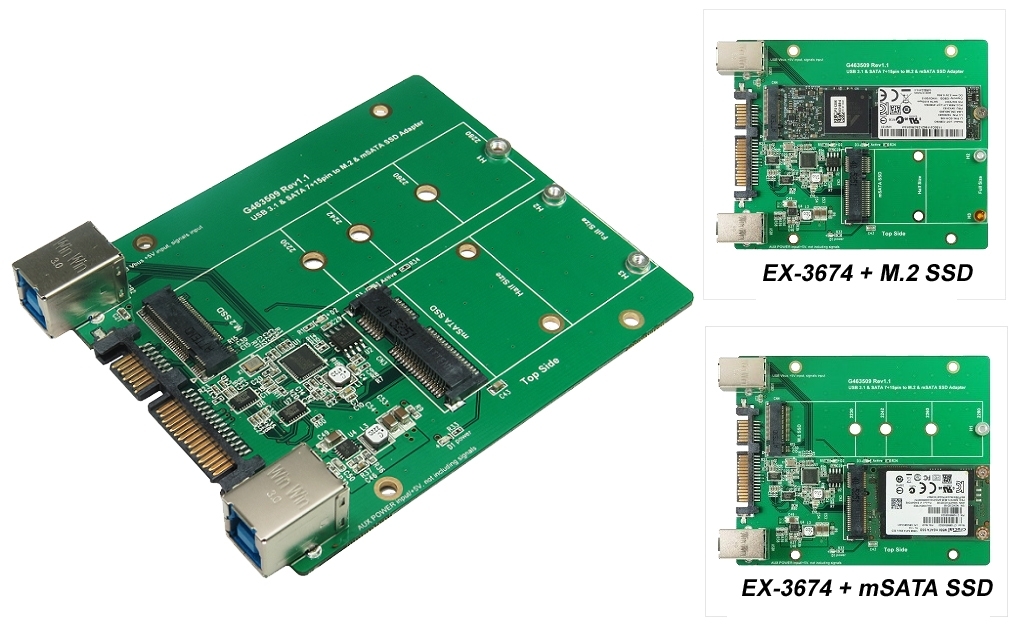

USB 3.2 Gen 2x1 and SATA 3 to M.2 & mSATA SSD
Product number:
EX-3674
GTIN/EAN:
4718359036743
USB 3.2 Gen 2x1 and SATA 3 to M.2 & mSATA SSD
An M.2 SSD module 2280, 2260, 2242 and 2230 type with B-Key or B+M-Key as well as an mSATA module with Half Size or Full Size can be used on the EX-3674. It is connected to the computer via a USB 3.2 or SATA 3 port.
- Connector with B-female with USB 3.2 Gen 2x1 with 10Gbps or SATA 3
- Converts 1x Half Size and Full Size mSATA SSD and M.2 NGFF SSD to USB 3.2 Gen 2x1
- Supports M.2 NGFF 2280, 2260, 2242 and 2230 Type Form Factor B-Key and B+M-Key and mSATA Half Size and Full Size
- Compliant with Universal Serial Bus 3.1 specification revision 1.0
- Power Supply over the USB 3.2 B-female 5V connector
- 3A maximum output current
- LED display for M.2/mSATA SSD for power as if the module are active
Packaging contents:
EX-3674, Screw to fix M.2 and mSATA modules, Manual
| Bus system: | USB 3.2 Gen 2 / SATA3 |
|---|---|
| Connections: | USB-B socket / SATA |
| Interface: | M.2 + mSATA |
| M.2 NGFF modules: | 2280, 2260, 2242, 2230 |
| Mounting Type: | PCBA for installation |
| Number of ports: | 2 |
| mSATA modules: | Half and Full Size |
