USB 3.2 Gen 2x1 to M.2 & mSATA card with B-female connector
Product number:
EX-3673
GTIN/EAN:
4718359036736
USB 3.2 Gen 2x1 to M.2 & mSATA card with B-female connector

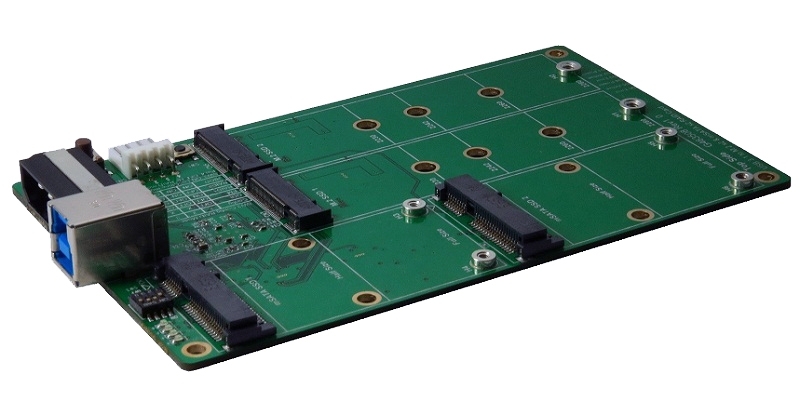

The EX-3673 converter is a board to replace a 2.5 inch hard disk or SDD. Two M.2 SSD modules 2280, 2260, 2242 and 2230 type with B-Key or B+M-Key as well as two mSATA modules with Half Size or Full Size can be used on the board. The EX-3673 is connected to the computer via a USB port.
- Connector with B-female with USB 3.2 Gen 2x1 with 10Gbps
- Converts 2x Half and Full Size mSATA SSD and 2x M.2 NGFF SSD to USB 3.2 Gen 2x1
- Build in ASM1351R USB 3.2 high performance processor
- Supports M.2 NGFF 2280, 2260, 2242 and 2230 Type Form Factor B-Key and B+M-Key and mSATA Half Size and Full Size
- Compliant with Universal Serial Bus 3.1 specification revision 1.0
- Power Supply over the USB 3.2 Micro-B 5V Bus
- 3A maximum output current
- Short circuit protection as thermal shutdown protection
Packaging contents:
EX-3673, Screw to fix M.2 and mSATA modules, Manual
| Bus system: | USB 3.2 Gen 2x1 |
|---|---|
| Connections: | USB-B socket |
| Interface: | M.2 + mSATA |
| M.2 NGFF modules: | 2280, 2260, 2242, 2230 |
| Mounting Type: | PCBA for installation |
| Number of ports: | 4 |
| mSATA modules: | Half and Full Size |
