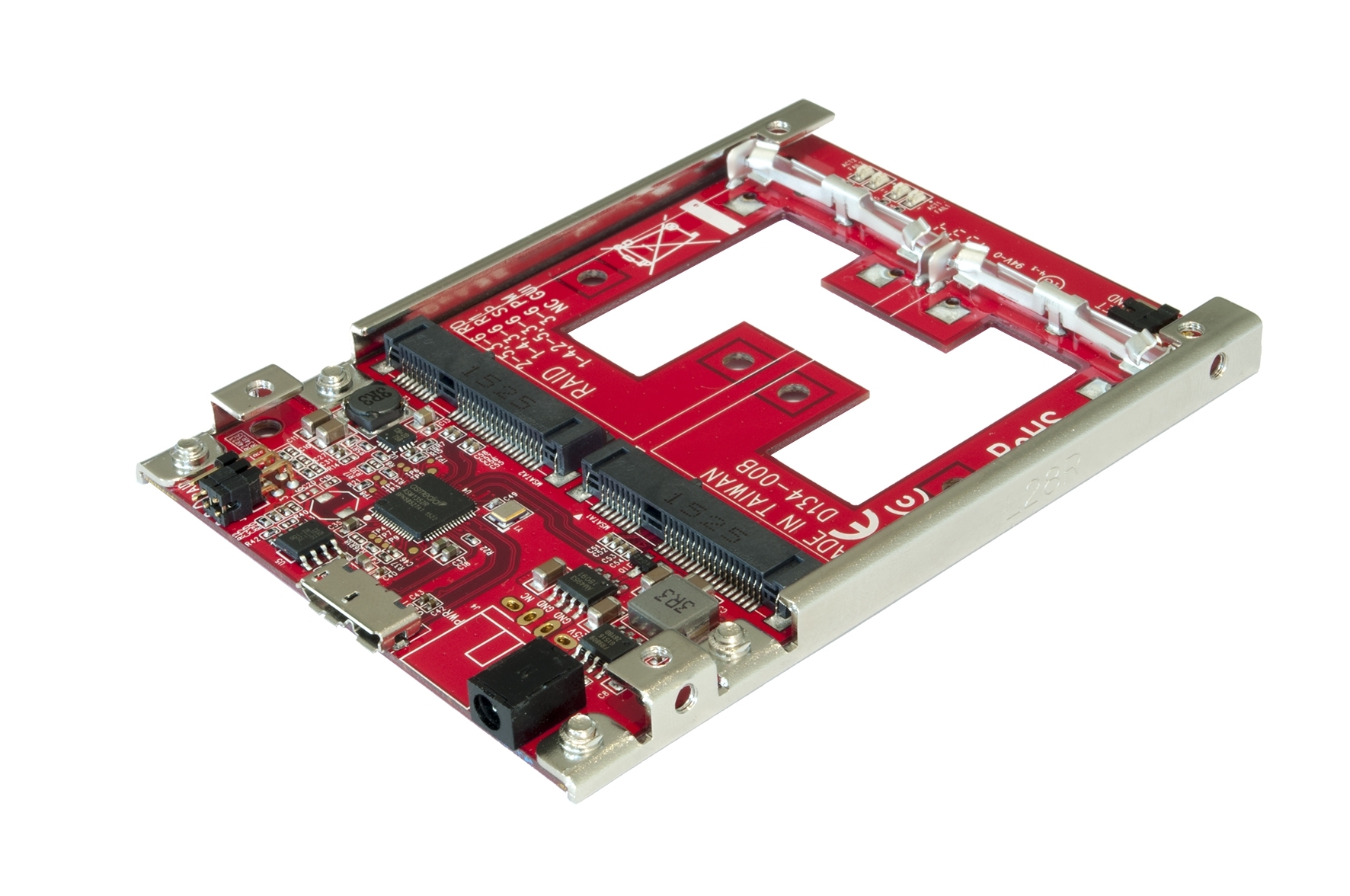

USB 3.2 Gen 2x1 to mSATA RAID 0/1 with 2.5-inch metal frame (7mm)
Product number:
EX-3680
GTIN/EAN:
4718359036804
USB 3.2 Gen 2x1 to mSATA RAID 0/1 with 2.5-inch metal frame (7mm)
The EX-3680 converter can be used as a replacement for a 2.5" hard disk or SDD. For the connection of the EX-3680 a USB 3.0 port on the mainboard or a USB 3.0 controller is required. Half Size as well as Full Size modules can be used.
- USB 3.2 Gen 2x1 to 6Gbps SATA 3 Hardware RAID Controller
- Converts 2x Full Size mSATA SSD to USB 3.2 Gen 2x1 2.5-inch case with 7 mm height
- Supports with Jumper RAID 0, 1, JaOBD
- Supports two SATA 2 and SATA 3 (6Gbps) mSATA SSD
- Supports ATA/ATAPI Packet Command Set
- Supports ATA/ATAPI LBA 48 Addressing Mode
- 100% compatible with 2.5-inch SATA drive mechanical specification
- Supports USB 3.2, 3.0 and 2.0 mainboard
- Compliant with Universal Serial Bus 3.1 specification Rev. 1.0
- Power from the USB 3.2 Micro-B 5V Bus
- Transparent to the operating system, no driver needed
Packaging contents:
EX-3680, 4x screws for mounting the 2.5" frame, manual
| Bus system: | USB 3.2 Gen 2x1 |
|---|---|
| Connections: | Micro-USB socket |
| Interface: | mSATA |
| Mounting Type: | 2.5" mounting frame |
| Number of ports: | 2 |
| mSATA modules: | Full Size |
