The EX-62035MPoE-SFP is probably the smallest industrial-grade 10-port Gigabit web-managed PoE switch and offers full Gigabit performance on all ports despite its small external dimensions. Up to 30W is available on each of the eight RJ45 ports for connecting PoE power devices (PD) such as IP cameras or IP telephones. The two additional SFP slots enable integration into a fibre optic network. Suitable SFP transceivers are available as accessories. Thanks to the robust metal housing and the extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications, even in harsh environments. Power is supplied via the terminal block (48-57VDC) and can also be redundant to reduce operational failures. A DIN-Rail Kit (pre-assembled) is included in the scope of delivery. 8x 10/100/1000Tx RJ45-Port, 2x 100/1000Fx SFP slot, auto detection Web-managed: Browser-based access for easy installation and management Power up to 8 PoE-capable remote network devices, transfers data and power on one single cable Fully IEEE 802.3af compliant PoE (PSE) type 1 = 15.40W and IEEE802.3at PoE+ (PSE) type 2 = 34.20W Maximum power delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B Auto-MDI/MDIX eliminates the need for crossover cables Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Supports jumbo frames up to 9kBytes Terminal block for redundant DC input, 2x 48 V to 57 VDC Rugged, very compact metal housing, IP40 Includes DIN-Rail Kit Extended operating temperature range from -40°C to +80°C Note:Refer to the STP cable grounding technical note. Delivery contents:EX-62035MPoE-SFP, DIN-Rail kit (pre-assembled), manual

The EX-62035M-SFP is probably the smallest industrial-grade 10-port Gigabit web-managed switch and offers full Gigabit performance on all ports despite its small external dimensions. The two SFP slots enable integration into a fibre optic network. Suitable SFP transceivers are available as accessories. Thanks to the robust metal housing and the extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications, even in harsh environments. Power is supplied via the terminal block (48-57VDC) and can also be redundant to reduce operational failures. A DIN-Rail Kit (pre-assembled) is included in the scope of delivery. 8x 10/100/1000Tx RJ45-Port, 2x 100/1000Fx SFP slot, auto detection Web-managed: Browser-based access for easy installation and management Auto-MDI/MDIX eliminates the need for crossover cables Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Supports jumbo frames up to 9kBytes Terminal block for redundant DC input, 2x 12 V to 48 VDC Rugged, very compact metal housing, IP40 Includes DIN-Rail Kit Extended operating temperature range from -40°C to +80°C Delivery contents:EX-62035M-SFP, DIN-Rail kit (pre-assembled), manual

The compact, industrial-grade 6-port Gigabit web-managed PoE switch EX-62030MPoE-SFP offers full Gigabit performance on all ports despite its small external dimensions. Up to 30W is available on four of the five RJ45 ports for connecting PoE-powered devices (PD) such as IP cameras or IP telephones. The SFP slot enables integration into a fibre optic network. Suitable SFP transceivers are available as accessories. The user-friendly, web-based management interface of the EX-62030MPoE-SFP allows for quick and convenient setup, configuration and management, including configuration backups and firmware upgrades. Thanks to its robust metal housing and an extended operating temperature range of -40°C to 75°C, it is suitable for a wide range of applications, even in harsh environments. Power is supplied via the terminal block (12-48VDC) and can also be provided redundantly to reduce operational downtime. A DIN-Rail kit (pre-assembled) and a wall mounting bracket are included in the scope of delivery. 5x 10/100/1000Tx RJ45 ports, 1x 100/1000Fx SFP slot, auto detection Web-managed: Browser-based access for easy installation and management Power supply for up to 4 PoE-enabled remote network devices, transmits data and power over the same cable Fully compatible with IEEE 802.3af PoE (PSE) Type 1 = 15.40W and IEEE802.3at PoE+ (PSE) Type 2 = 34.20W Maximum power output (PD): Type 1 = 12.95W / Type 2 = 25.50W Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B Auto-MDI/MDIX eliminates the need for crossover cables Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Supports jumbo frames up to 16kBytes Terminal block for redundant DC input, 2x 12V to 48VDC Robust, very compact metal housing, IP40 Includes DIN rail kit and wall mounting bracket Extended operating temperature range from -40°C to +75°C Delivery contents:EX-62030MPoE-SFP, DIN-Rail kit (pre-assembled), wall mounting kit, manual

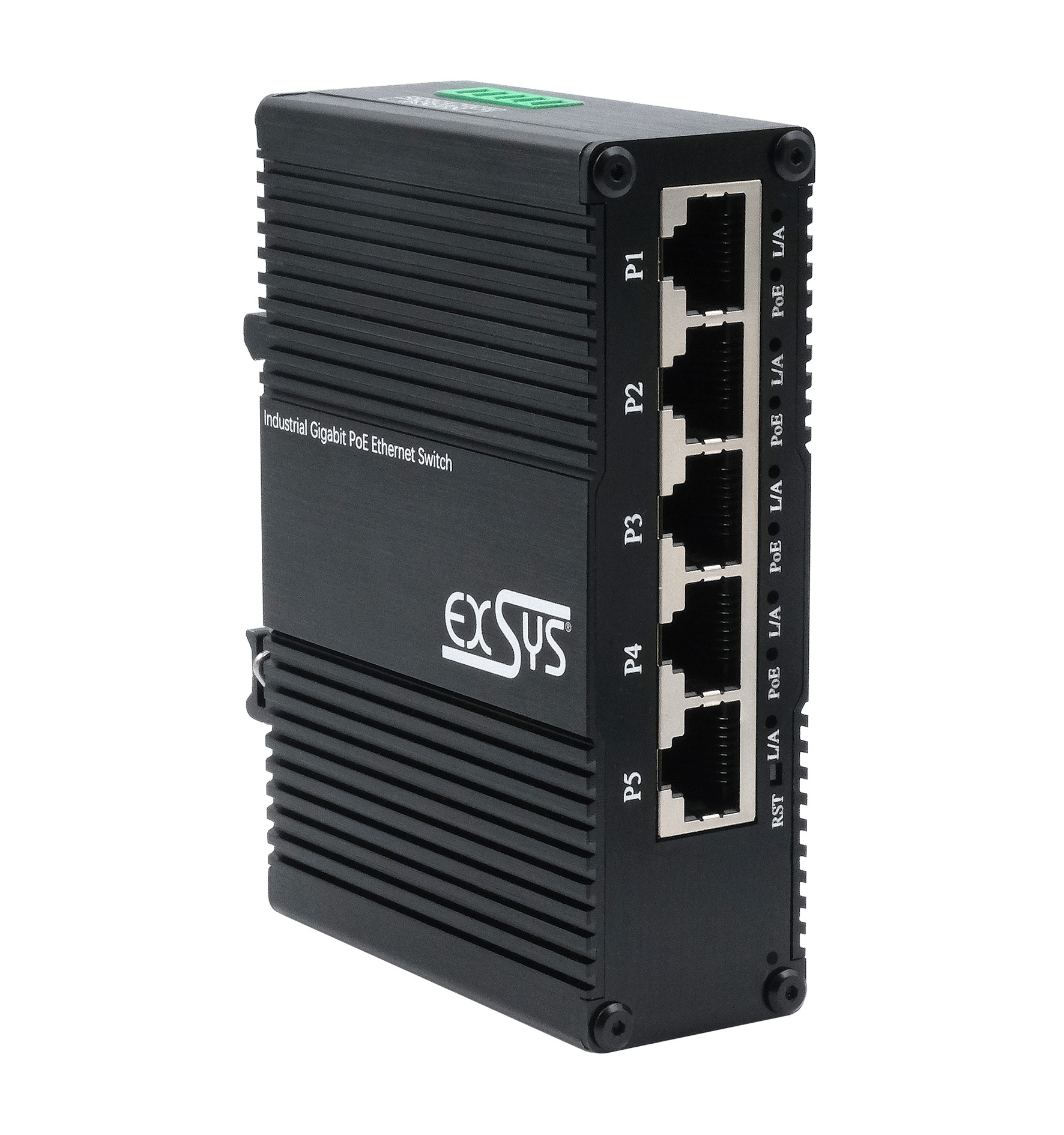

The compact, industrial-grade 5-port Gigabit web-managed PoE switch EX-62030MPoE offers full Gigabit performance on all ports despite its small external dimensions. Up to 30W is available on four of the five RJ45 ports for connecting PoE-powered devices (PD) such as IP cameras or IP telephones. The user-friendly, web-based management interface of the EX-62030MPoE allows for quick and convenient setup, configuration and management, including configuration backups and firmware upgrades. Thanks to its robust metal housing and an extended operating temperature range of -40°C to 75°C, it is suitable for a wide range of applications, even in harsh environments. Power is supplied via the terminal block (12-48VDC) and can also be provided redundantly to reduce operational downtime. A DIN-Rail kit (pre-assembled) and a wall mounting bracket are included in the scope of delivery. 5x 10/100/1000Tx RJ45 ports Web-managed: Browser-based access for easy installation and management Power supply for up to 4 PoE-enabled remote network devices, transmits data and power over the same cable Fully compatible with IEEE 802.3af PoE (PSE) Type 1 = 15.40W and IEEE802.3at PoE+ (PSE) Type 2 = 34.20W Maximum power output (PD): Type 1 = 12.95W / Type 2 = 25.50W Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B Auto-MDI/MDIX eliminates the need for crossover cables Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Supports jumbo frames up to 16kBytes Terminal block for redundant DC input, 2x 12V to 48VDC Robust, very compact metal housing, IP40 Includes DIN-Rail kit and wall mounting bracket Extended operating temperature range from -40°C to +75°C Delivery contents:EX-62030MPoE, DIN-Rail kit (pre-assembled), wall mounting kit, manual
