The D-type adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example. External connection: HDMI female Internal connection: HDMI male For installation in D-type cut-outs of 31 x 25 mm Housing diameter: approx. 24 mm Two threads for screw mounting Total length: 20cm Delivery contents:EX-49162, 2 screws

The D-type adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example. External connection: USB-C female Internal connection: USB-C female USB 3.2 Gen 1, 5 Gbit/s Supports fast charging up to 100 W (5 A / 20 V) For installation in D-type cut-outs of 31 x 25 mm Housing diameter: approx. 24 mm Two threads for screw mounting Note:For USB-C female to female adapters, the connections are not reversible due to the technical specifications of USB-C! Delivery contents:EX-49158, 2 screws

The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends. 15-pin VGA male connector 16-pin Terminal Block Easy installation of open cable ends Screw Pich 3.81mm

This Type-C female to USB 3.2 Gen 1/2 Type-A male is designed for connecting any existing USB-C device to your PC or MAC with USB 3.2 Gen 1/2 Type-A port. Existing USB data and charging cables for iPhone, iPad, smartphones, tblet PCs and other electronic peripherals can be connected to devices with a USB 3.2 Gen 1/2 type A-female connector. Small and so easy to Use!  USB 3.2 Gen 1/2 Type-A male connector USB 3.2 Gen 1/2 Type-C female connector Slim & light Plastic case Plug and Play Colour: black

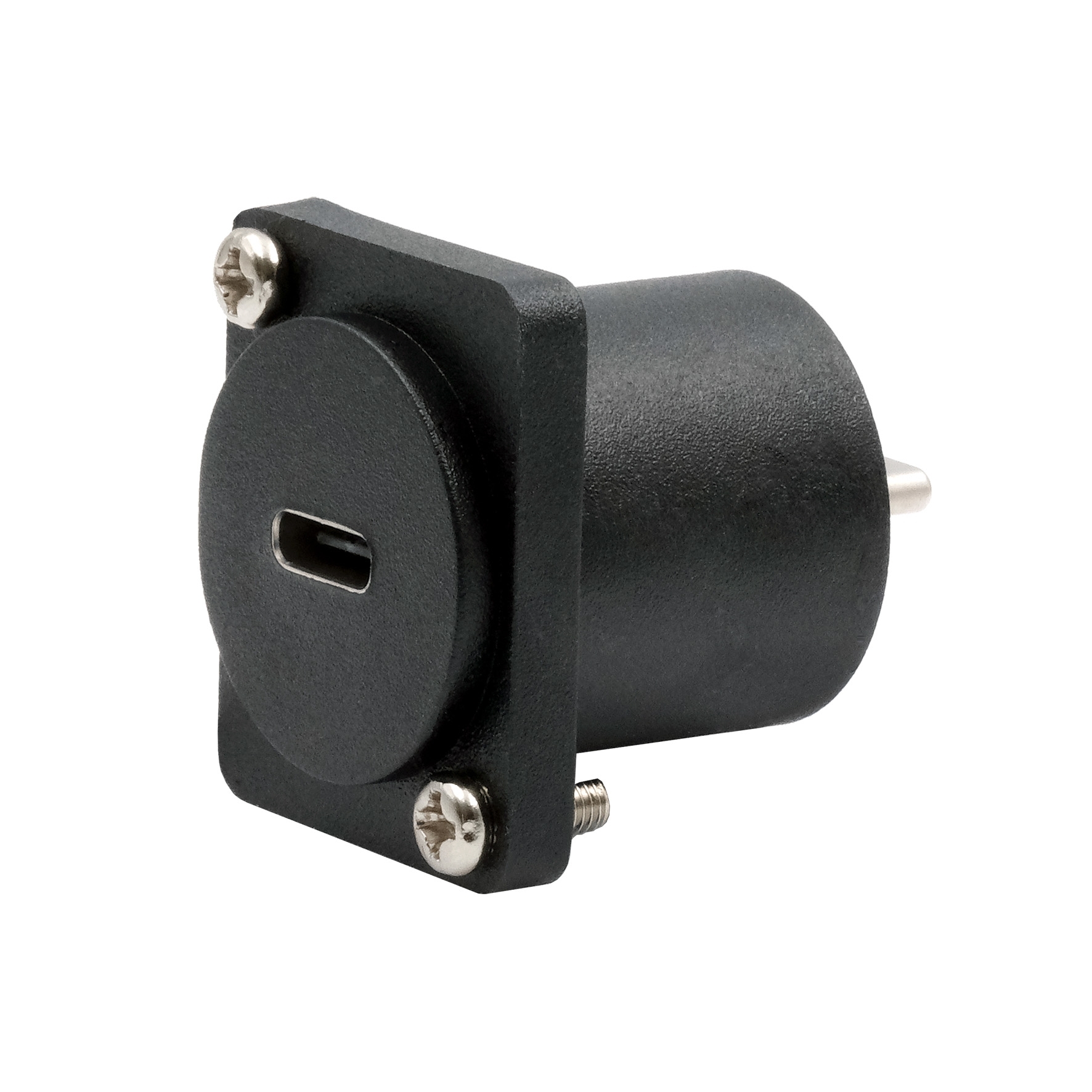

The D-type adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example. External connection: USB-C female Internal connection: USB-C male USB 3.2 Gen 2x1, 10 Gbit/s Supports fast charging up to 100 W (5 A / 20 V) For installation in D-type cut-outs of 31 x 25 mm Housing diameter: approx. 24 mm Two threads for screw mounting Delivery contents:EX-49167, 2 screws

The D-type cable adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example. External connection: USB-C female Internal connection: USB-C male USB 3.2 Gen 2x1, 10 Gbit/s Supports fast charging up to 100 W (5 A / 20 V) For installation in D-type cut-outs of 31 x 25 mm Housing diameter: approx. 24 mm Two threads for screw mounting Total length: 20cm Delivery contents:EX-49166, 2 screws

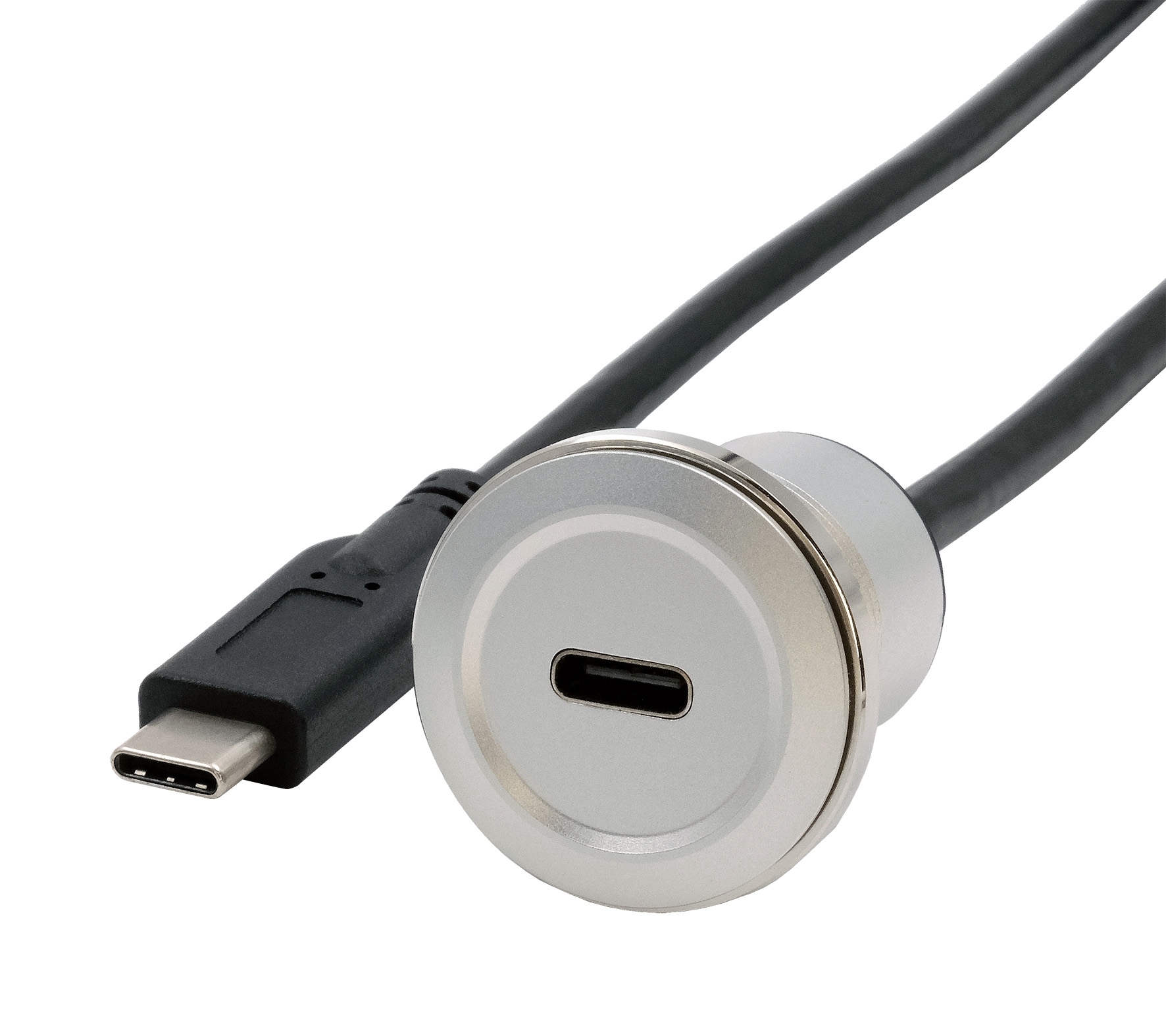

The panel mount adapter can be installed in a panel or enclosure with a cut-out of 25.3 mm (up to max. 27 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner. Use e.g. as service interface for technicians or communication interface in conference tables or at workstations External connection: HDMI socket Internal connection: HDMI plug HDMI 2.0 capable For installation in cut-outs of 25.3-27 mm Integrated thread with sealing ring and lock nut Total length: 30 cm

The EX-6003HMVS is the ideal solution for instantly sharing USB devices over a network or the Internet. The USB server has four USB 2.0 ports with a data rate of 480 Mbps. The RJ45 Ethernet port provides a versatile network connection for smooth communication between devices. Built to last, the EX-6003HMVS has a robust metal casing with wall mounting brackets to ensure optimum performance in harsh environments, and is supplied with a DIN-Rail kit. Its innovative networking protocols emulate USB over TCP socket and integrate remote USB devices as if they were locally connected to the host PC, providing unrivalled convenience and flexibility. The EX-6003HMVS provides 15KV ESD surge protection for all USB signals to protect your devices from electrical damage. In addition, each USB port supports 5V output voltage to ensure reliable operation of connected devices. Configuration of the EX-6003HMVS is effortless thanks to the Windows-based GUI configuration program and the web-based configuration program, which provide user-friendly options tailored to your needs. The control function on each USB port and the control support API for application software integration make it easy to customise the EX-6003HMVS to your needs. For added convenience, DIP switches enable/disable each port for greater control over device connectivity. Compatibility with Windows 7, 8.x, 10 and 11 ensures seamless integration with existing systems. Detailed installation instructions and software can be downloaded from our website. Experience unrivalled reliability with the EX-6003HMVS. Your ultimate solution for remote USB connectivity in any environment! Share up to 4 USB 2.0 peripherals over your existing IP network Powerful USB extension, server over IP Four high speed, high performance USB 2.0 outputs Network Protocols: Emulates USB over TCP socket, so remote USB devices function as if they were locally connected to the host PC Supports 5V output power on each USB port No distance restrictions for USB peripherals on the network Can be used for MFPs (multifunction printers), USB printers, scanners, memory sticks, USB hard drives, keyboards, mice, etc. Intuitive user interface for easy configuration and firmware updates Power supply +9V to +24V via DC socket or terminal block USB ports can be individually switched on or off via DIP switch Packaging contents:EX-6003HMVS, Power Supply 12V/3A, DIN-Rail Kit, Quick Installation Guide

The EX-61004 is a multiprotocol RS-232/422/485 serial device server for integrating RS-232/422/485 serial devices, such as barcode scanners, weighing systems and payment terminals, into an IP-based Ethernet network. The serial devices are connected to the network and are available for sharing on the subnet and the Internet. Extensive network protocols such as TCP Server, TCP Client, UDP, VCOM, Remote Pair Master Slave, Modbus Server, Modbus Client and SNMP are supported. In addition, serial devices with remote pair master-slave mode can communicate with each other via peer-to-peer mode without the need for an intermediate PC or conversion software. With the Virtual COM (VCOM) software available for download, a perfectly migrated virtual serial port can be created on Windows computers for each serial device. Interface RS-232V.24/422/485 with 4 ports Interface and operation mode can be defined individually for each port Data bits: 5, 6, 7, 8 / Stop bits: 1, 2 Parity: None, Even, Odd Signals: RS-232: TXD, RXD, RTS, CTS, and GND RS-422: TXD+, TCD-, RXD+ RXD-, GND RS-485 2 wire: Data+, Data-, GND Operating modes: VCOM, MCP, TCP Server, TCP Client, UDP, Remote Pair mode, Modbus TCP Server, Modbus TCP Client, MQTT Point to point connection, no software needed Virtual-COM software (download) Robust metal housing Delivery contents:EX-61004, 4x cable adapter RJ45-DB9, power supply, wall mounting bracket, quick start guide

This Type-C to USB 3.2 Gen 1/2 AF adapter is designed for connecting any existing standard USB-A device to your new USB Type-C device. Use your existing USB data and charging cables to connect USB 3.2 Gen 1/2 Type C devices to your iPhone, iPad, smartphones, tablets, and other elec-tronics devices. New generation USB 3.2 Gen 1/2 standard, reversible USB Type C convertor for usage conveniently, so you can plug it in the right way every single time. Small and so easy to Use!  USB 3.2 Gen 1/2  Type-C Male connector for example the new MacBoox or Chromebook Pixel USB 3.2 Gen 1/2 Type-A Female connector for Flash Drives, keyboards or mouse Reversible Type-C connector and backward compatible with existing USB 3.0 and 2.0 devices Data Sync and Charge Support OTG function for USB Type-C phone Slim & light Aluminium design, stylish and for longer used Plug and Play Color: black

The D-type adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example. External connection: HDMI female Internal connection: HDMI female For installation in D-type cut-outs of 31 x 25 mm Housing diameter: approx. 24 mm Two threads for screw mounting Delivery contents:EX-49152, 2 screws

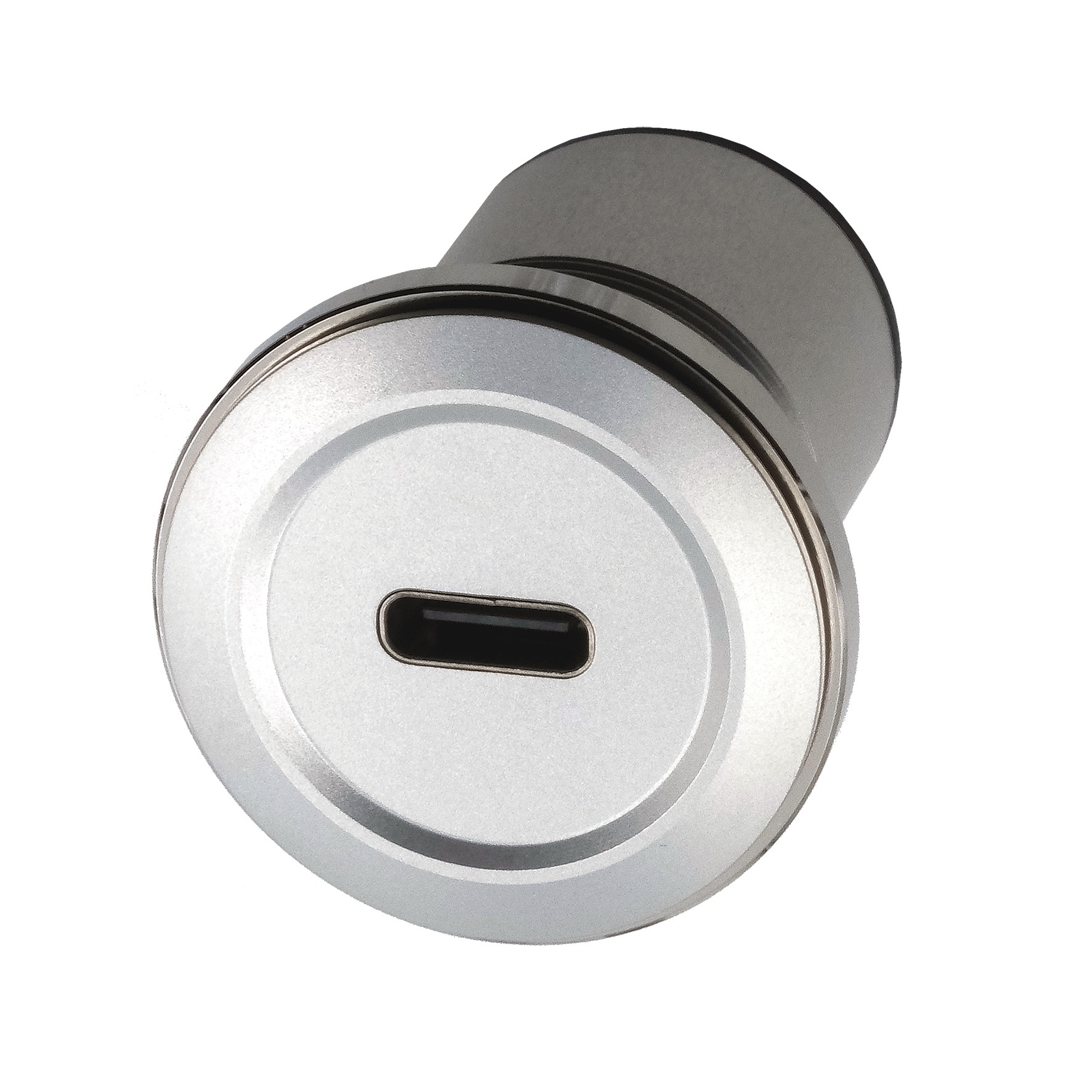

The panel mount adapter can be installed in a panel or enclosure with a standard cut-out of 22.3 mm (up to max. 24 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner. Use e.g. as service interface for technicians or communication interface in conference tables or at workstations External connection: USB-A socket Internal connection: USB-A socket USB 2.0, 480 Mbit/s For installation in cut-outs of 22.3-24 mm Integrated thread with sealing ring and lock nut

The panel mount adapter can be installed in a panel or enclosure with a standard cut-out of 22.3 mm (up to max. 24 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner. Use e.g. as service interface for technicians or communication interface in conference tables or at workstations External connection: USB-C socket Internal connection: USB-A socket USB 2.0, 480 Mbit/s For installation in cut-outs of 22.3-24 mm Integrated thread with sealing ring and lock nut

The panel mount adapter can be installed in a panel or enclosure with a standard cut-out of 22.3 mm (up to max. 24 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner. Use e.g. as service interface for technicians or communication interface in conference tables or at workstations External connection: USB-C socket Internal connection: USB-C socket USB 3.2 Gen 1, 5 Gbit/s Supports fast charging up to 100 W (5 A / 20 V) For installation in cut-outs of 22.3-24 mm Integrated thread with sealing ring and lock nut Note:For USB-C female to female adapters, the connections are not reversible due to the technical specifications of USB-C!

The USB 2.0 to RS-232 cable with A-connector provides a serial RS-232 high performance UART 16C550 output. It supports the external voltage of +5V especially on pin 9 of the connector. It is designed to extend another serial output for PC, small workstation or server via the USB 1.1, 2.0 or 3.2 Gen 1 bus. Due to the easy installation there is no need to open the computer and the EX-1311-2-5V can be installed during operation. Two nuts are included, which can easily be replaced with the thumbscrews if the cable to be connected has screws. Interface: RS-232 V.24 with +5V on pin 9 by the connector FIFO Buffer: 16C550 with 16Byte I/O addresses and Interrupt: Set from the operating system Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND LED Display for RX and TX Power from the USB Bus (Bus Power) Exchangeable screw with hex nuts Chipset: FTDI Packaging contents:EX-1311-2-5V, Driver CD, 2x hex nuts, Manual

The EX-1301-2F provides one serial RS-232 high performance UART 16C550 port. It is designed to add another serial port for PC, small workstation or server via USB 1.1, 2.0 or 3.2 bus. It is the perfect solution for connecting barcode scanners, card readers, scales, etc. Due to the easy installation, there is no need to open the system and the EX-1301-2F can be installed while the system is running. The EX-1301-2F is equipped with a 9 pin socket (DCE) and can therefore be connected directly to the peripheral device. No further serial cable is required. The EX-1301-2F supports COM-Storage which retains the COM port setting for the serial devices when plugged in and unplugged. The COM port values once assigned are saved and automatically reassigned correctly after plugging in and unplugging. This also applies when switching between different USB-Ports. Interface RS-232 V.24 16C550 FIFO Buffer with 256Bytes I/O addresses and interrupt is set from the operating system Data bits: 7 and 8 Stop bits: 1, and 2 Parity: None, Even, Odd, Space and Mark Signal RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Powered from the USB-Port - No external power adapter required Chipset: FTDI Packaging contents:EX-1301-2F, Driver CD, Manual

The EX-47901 RS-232 to RS-485 converter can be used for any PC, workstation or server with an RS-232 interface. It is equipped with a 9 pin female connector that you can connect directly to your RS-232 serial port. The EX-47901 converts unbalanced, full-duplex RS-232 signals into balanced half-duplex RS-485 signals. The RS-232 port is configured as a DCE port and has a DB9 socket supporting pin 2 (TXD input), pin 3 (RXD output) and pin 5 (signal ground). The following pins are bridged: pin 7 (RTS) with pin 8 (CTS) and pin 6 (DSR) with pin 1 (CD) with pin 4 (DTR). Interface: RS-232 Signals: TxD, RxD, GND Loop back wiring: RTS to CTS, DTR to DSR and DCD Interface: RS-485 2-wire RS-485 (Data+/-, Data+/-, Half-duplex) ATTATM: Supports RS-485 Auto Transceiver Turn Around Feature, Supports Echo Mode for RS-485 Mode. Terminator: 4.5 KΩ Operating voltage comes from RS-232 signal, external power supply possible but not needed in most cases Delivery contents:EX-47901, manual

The EX-47905 RS-232 to RS-422/485 converter can be used for any PC, workstation or server with an RS-232 interface. The EX-47905 is equipped with a 9 pin female connector that you can connect directly to your RS-232 serial port. It converts unbalanced, full-duplex RS-232 signals to balanced full or half-duplex RS-422 / 485 signals. Interface: RS-232 Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Loop Back Wiring: RTS to CTS, DTR to SDR and DCD  Interface: RS-422/485 Two modes are selectable: 4-wire RS-422 (TXD+/-, RXD+/-, Half-duplex)/2-wire RS-485 (Data+/-, Data+/-, Full-duplex) ATTATM: Supports RS-485 Auto Transceiver Turn Around Feature, Echo Mode for RS-485 mode Terminator: 120 Ohm, can be enabled/disabled by DIP switch Port-powered from RS-232 Lines Packaging contents:EX-47905, Manual

The D-type cable adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example. External connection: USB-A female Internal connection: USB-A male USB 3.2 Gen 1, 5 Gbit/s For installation in D-type cut-outs of 31 x 25 mm Housing diameter: approx. 24 mm Two threads for screw mounting Total length: 20cm Delivery contents:EX-49164, 2 screws

The panel mount adapter can be installed in a panel or enclosure with a standard cut-out of 22.3 mm (up to max. 24 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner. Use e.g. as service interface for technicians or communication interface in conference tables or at workstations External connection: USB-A female Internal connection: USB-A male USB 3.2 Gen 1, 5 Gbit/s For installation in cut-outs of 22.3-24 mm Integrated thread with lock nut Total length: 30cm

The panel mount adapter can be installed in a panel or enclosure with a standard cut-out of 22.3 mm (up to max. 24 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner. Use e.g. as service interface for technicians or communication interface in conference tables or at workstations External connection: USB-C socket Internal connection: USB-C plug USB 3.2 Gen 2x1, 10 Gbit/s Supports fast charging up to 100 W (5 A / 20 V) For installation in cut-outs of 22.3-24 mm Integrated thread with sealing ring and lock nut Total length: 30 cm

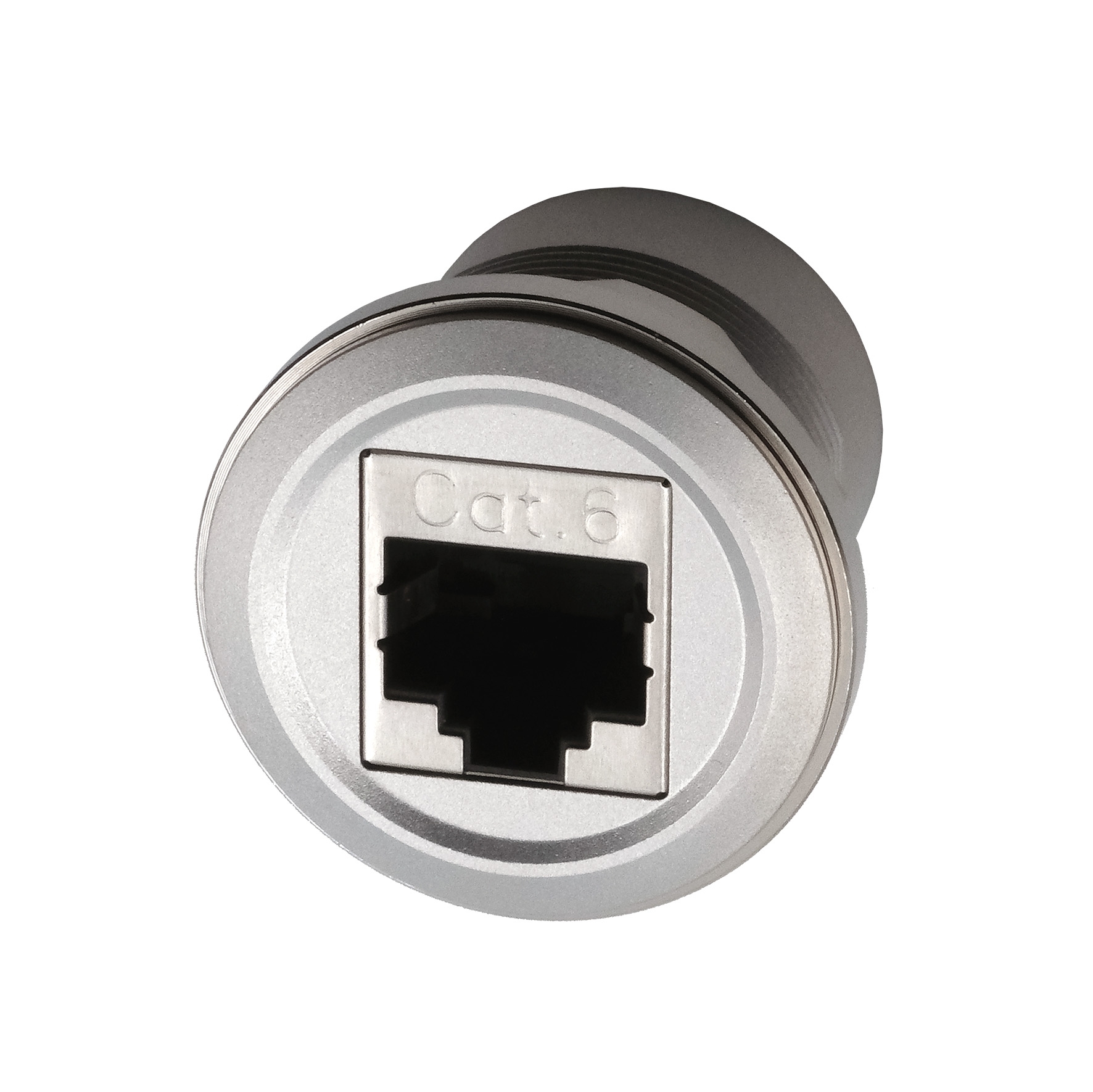

The panel mount adapter can be installed in a panel or enclosure with a cut-out of 25.3 mm (up to max. 27 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged way. Use e.g. as service interface for technicians or communication interface in conference tables or at workstations External connection: RJ45 socket Internal connection: RJ45 socket CAT.6 For installation in cut-outs of 25.3-27 mm Integrated thread with sealing ring and lock nut

The EX-6030 in metal housing allows you to connect your serial devices over the network (Ethernet) in the simplest way. You are no longer limited to a fixed distance, but can control any RS-232 peripheral device over the network. You can easily connect EX-6030 to the network with IP address (UDP, IP, TCP, ICMP, HTTP, DHCP, ARP ping). The control is also possible via the enclosed and other Virtual Com Port Software. The COM ports are then entered in the device manager. The EX-6030 can be screwed directly to the wall or installed in a 19" rack with the DIN-Rail Kit. Interface: RS-232 V.24 Data Bits: 7, 8 Parity: none, even, odd RS-232 Signal: TxD, RxD, GND (Loop RTS, CTS, DTR, DSR, DCD) Ethernet Protocol: IP, TCP, DHCP Chipset: Samsung S3C4510B Packaging contents:EX-6030, Power Supply +5V / 2A, Wall Mount Kit, DIN-Rail Kit, Driver CD, Manual

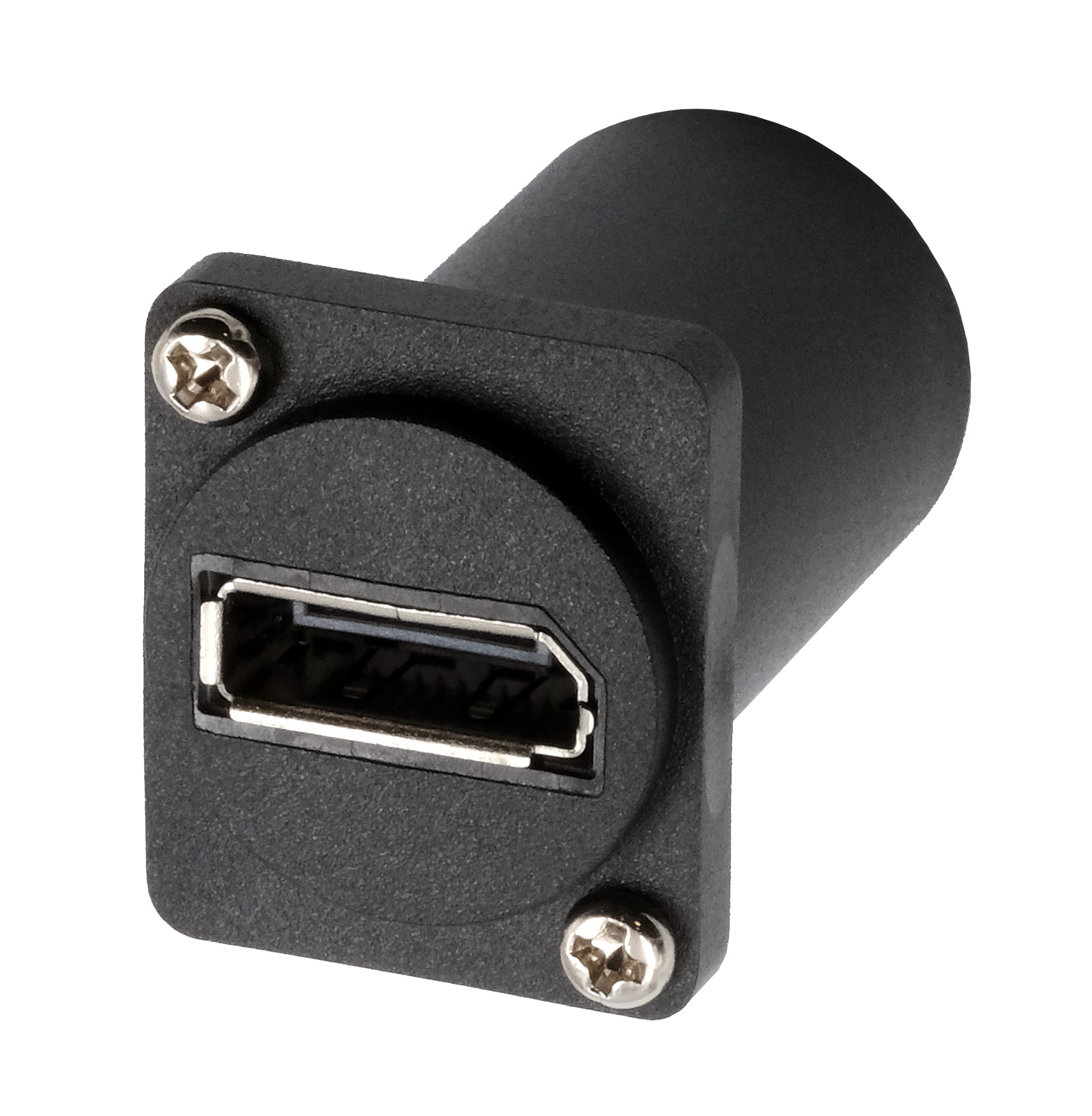

The D-type adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example. External connection: DisplayPort female Internal connection: DisplayPort female For installation in D-type cut-outs of 31 x 25 mm Housing diameter: approx. 24 mm Two threads for screw mounting Delivery contents:EX-49151, 2 screws
