EX-11290HMS
10-Port USB 3.2 Gen 1 Metal HUB for table, wall and DIN-Rail, 15KV ESD Protection
The rugged, industrial-grade EX-11290HMS is a USB 3.2 Gen 1 metal HUB for up to ten end devices that can be installed on the wall or on a mounting rail. The EX-11290HMS ensures secure data transmission and a performance of up to 5Gbit/s. The EX-11290HMS is also equipped with 15KV ESD overvoltage protection. A maximum of 1.0A is available at nine USB ports via the external power supply, while up to 2.4A is available at one port.Power is supplied via the supplied plug-in power supply unit or an optional DIN rail power supply unit (self-power). Bus power is not supported.
USB 3.2 Gen 1 Metal HUB with ten downstream ports
15KV ESD surge protection for each output
Power +9V up to +24V DC via Terminal Block or DC-Connector
10 ports with 9x 1A and 1x 2.4A (total 57W) with the supplied power supply
Can also be used as a USB charger without connection to the host PC
Automatic recognition of the data transfer rate for attached peripherals
Includes wall mount kit and DIN-Rail Kit
Compact industrial design with a robust metal case
LED indicators for power supply and connection status
Chipset: VIA VL817Q7S
Packaging contents:EX-11290HMS, USB 3.2 Gen 1 cable 2.0m, power supply 12V/5A, DIN-Rail Kit, Wallmount Kit, Manual
EX-1183HMVS-2
4 Ports USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection
The rugged industrial-grade EX-1183HMVS-2 is a USB 3.2 Gen 1 metal hub for up to four end devices. The hub provides four bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable can be attached to the EX-1183HMVS-2 with thumbscrews without a screwdriver. The EX-1183HMVS-2 can be powered via a DC Jack as well as a two-wire terminal block connector (+7V to +48V). The HUB meets the special requirements of industrial applications. Thanks to its special housing, the EX-1183HMVS-2 can be screwed to the wall, under a table or in a 19" cabinet (optional with EX-6099).
USB 3.2 Gen 1 Metal HUB with 4 Ports
15KV ESD Surge Protection for all 4 Ports
Protection of Devices against voltage fluctuation
Power +7V up to +48V DC over the DC-Connector or Terminal Block
Power supply optionally also from the USB-Bus +5V (Bus-Power)
Metal housing for wall, table or optional DIN-Rail (EX-6099)
Automatic recognition of the data transfer rate for the attached external devices
Up to 2.3A current at one port, 1.5A when all ports in use simultaneously (max. output 30W)
Supports BC v1.2: SDP/CDP/DCP Charging Modes
Automatic detection of input polarity on the current terminal block
Rugged Metal Case
1x LED Power-Indicator
Two internal jumpers for individual mode control (data and power):
Bus power jumper:
ENA = bus power operation possible
DIS = operation with power supply only (self power)
Host control jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is switched on
Packaging Contents:EX-1183HMVS-2, Power Supply (12V/3A), USB 3.2 Gen 1 Cable, Manual
EX-1177HMV
7 port USB 2.0 Metal HUB for DIN-Rail, Cable can screw lock
The rugged, industrial-grade EX-1177HMV USB hub with seven screw-lockable USB 2.0 outputs can be installed on the wall or on a support rail. It connects to a computer or server with the included USB 2.0 cable. It supports Hi-Speed USB 2.0 data transfer rate of up to 480 Mbps and is backward compatible to USB 1.1. It can be powered with USB bus power or via a two-wire terminal block connector (+7V to 24V).
USB 2.0 HUB with seven screwable downstream USB 2.0 ports
Power supply +7 to +24V DC via terminal block
User-friendly installation with the integrated DIN-Rail Kit
Up to 500mA current per port
Compact industrial design
Automatic detection of the data transfer rate for the connected peripheral devices
Power supply optionally from USB-BUS +5V (Bus-Power)
Chipset: Terminus FE 2.1
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1177HMV, USB 2.0 cable 2.0m, DIN-Rail Kit, Manual
Video
EX-12290HMS
10 Port USB 3.2 Gen 2x1 Metal HUB with 4x USB-C and 6x USB-A 3.2 Gen 1, for table, wall and DIN-Rail mounting
The EX-12290HMS is a rugged metal USB 3.2 Gen 2x1 hub for up to ten devices that can be mounted on a wall or DIN-rail. It connects to the host PC via a USB-C cable and provides four USB-C 3.2 Gen 2x1 ports and six USB-A 3.2 Gen 1 ports for end devices. The USB-C ports offer excellent performance of up to 10Gbps (SuperSpeed USB 10Gbps), while the USB-A ports transfer data at up to 5Gbps (SuperSpeed USB 5Gbps). Up to 2.5A per port with a maximum of 64W is available from the external power supply. This makes it easy to charge iPhone, iPad, smartphones and tablets. Power is supplied via the plug-in power supply unit supplied or an optionally available DIN-Rail power supply unit (self-power).
USB 3.2 metal HUB with 4x USB-C Gen 2x1 and 6x USB-A Gen 1 downstream
15KV ESD surge protection for each output
Power +9V up to +24V DC via Terminal Block or DC Jack
Up to 2.4A per port, total output power max. 64W
Automatic detection of the data transfer rate of connected peripherals
Includes wall mount kit and DIN-Rail Kit
Compact industrial design
Rugged metal case
LED indicators for power supply and connection status
Packaging contents:EX-12290HMS, Power Supply (24V/3A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, Wall Mounting Brackets, Manual
EX-1177-2
7-Port USB 2.0 Metal HUB
The EX-1177-2 is the origin of all 7-port metal hubs. It expands one USB 2.0 port of a desktop or notebook computer into seven additional USB 2.0 ports and supports all USB connections from 1.1 to 3.2. The included 5V/4A power supply provides 500mA at each port. The EX-1177-2 guarantees secure data transfer at speeds of up to 480Mbps. It is very compact and equipped with a robust metal housing. This makes it ideal for industrial applications. Thanks to its intelligent design, the EX-1177-2 can be mounted on the wall, under a table or in a 19" rack using the optional EX-6099 DIN rail kit. The EX-1177-2 is of the highest quality and is manufactured in Taiwan.
USB 2.0 hub with seven downstream ports
Power supply +5V/4A via DC Jack
Optional power supply from USB-BUS +5V (bus power)
Automatic detection of data transfer rate of connected peripherals
Robust metal housing for wall, table or optional DIN-Rail mounting (with EX-6099)
500 mA current at all 7 ports
1x LED power indicator
Chipset: Terminus FE 2.1
Jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1177-2, USB 2.0 cable 1.8m, power supply 5V/4A, manual
EX-11237HMS-2
7-Ports USB 3.2 Gen 1 Metal HUB for Table, Wall and DIN-Rail, 15KV ESD Protection
The rugged, industrial-grade EX-11237HMS-2 is a USB 3.2 Gen 1 metal hub for up to seven end devices that can be wall-mounted or DIN-Rail mounted. It provides secure data transfer and performance of up to 5Gbps. The EX-11237HMS-2 is also equipped with 15KV ESD surge protection. A maximum of 2.4A can be made available per USB port via the external power supply.Power is supplied via the supplied plug-in power supply unit or an optional DIN-Rail power supply unit (self-power). Bus power is not supported.
USB 3.2 Gen 1 metal HUB with seven downstream ports
15KV ESD overvoltage protection for each output
Power supply +9V to +24V DC via terminal block or DC socket
2.4A per port with included power supply unit
Automatic detection of the data transfer rate for the connected peripherals
Includes wall mounting bracket and DIN-Rail kit
Compact industrial design with a robust metal casing
LED indicators for power supply and connection status
Chipset: VIA VL817S
Packaging contents:EX-11237HMS-2, USB 3.2 Gen 1 cable 2m, plug-in power supply unit 12V/4A, DIN-Rail kit, wall mounting kit, manual
EX-11244HMS
4 Port USB 3.2 Gen 1 metal HUB with 15KV ESD Protection for wall and DIN-Rail mounting
The robust, industrial-grade EX-11244HMS USB hub in a metal housing with four USB 3.2 Gen 1 outputs can be installed on the wall or on a carrier rail. It ensures secure data transfer and excellent performance of up to 5Gbps (SuperSpeed USB 5Gbps). In addition, EX-11244HMS is equipped with 15KV ESD surge protection. Up to 1.5A can be provided to each port via the external power supply. This allows you to charge iPhone, iPad, smartphone and tablet without any problems.An optionally available power supply is required for operation (self-power), bus-power is not supported.
USB 3.2 Gen 1 Metal HUB with four downstream ports
15KV ESD surge protection for each output
Power +9V up to +24V DC via Terminal Block or DC-Connector
Up to 2.4A current at one port, 1.15A when all ports in use simultaneously (max. output 23W)
Automatic recognition the data transfer rate for the attached external devices
Includes wall mount kit and DIN-Rail Kit
Compact industrial design
Rugged metal case
LED indicators for power supply and connection status
Chipset: VIA VL817S
Packaging contents:EX-11244HMS, USB 3.2 Gen 1 cable 2.0m, DIN-Rail Kit, Wallmount Kit, Manual

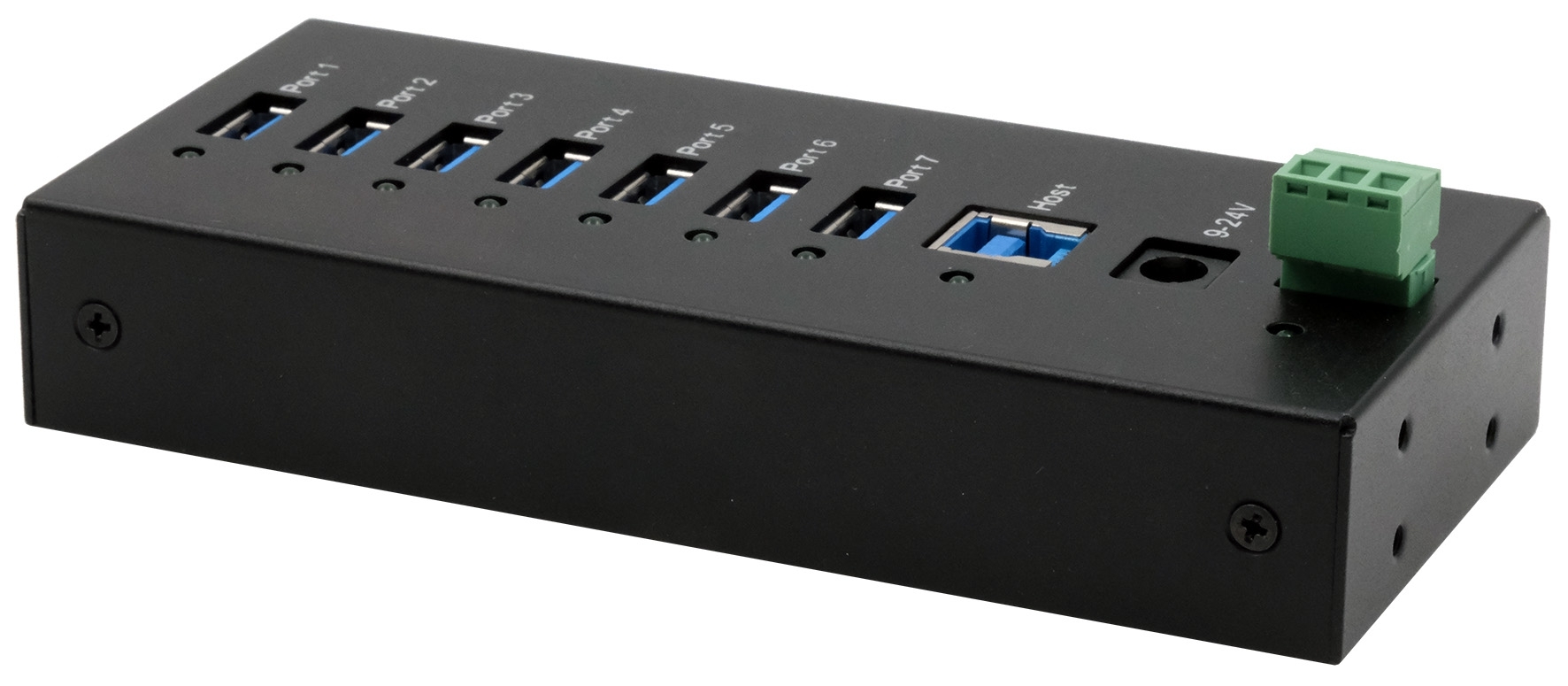

EX-11247HMS
7-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Protection for wall and DIN-Rail mounting
The robust, industrial EX-11247HMS USB hub in a metal housing with seven USB 3.2 Gen 1 outputs can be installed on the wall or on a carrier rail. All ports are located on the top, offering high flexibility for installation in an enclosure or cabinet, for example. In addition, the EX-11247HMS is equipped with a 15KV ESD overvoltage protection. The external power supply can provide up to 1.5A per USB-port. This allows you to charge iPhone, iPad, smartphone and tablet without any problems. An optional power supply is required for operation (Self-Power), Bus-Power is not supported.
USB 3.2 Gen 1 Metal HUB with seven downstream ports
15KV ESD surge protection for each output
Power +9V up to +24V DC via Terminal Block or DC-Connector
Up to 2.4A current at one port, 1.25A when all ports in use simultaneously (max. output 45W)
Automatic recognition the data transfer rate for the attached external devices
Includes wall mount kit and DIN-Rail Kit
Compact industrial design
Rugged metal case
LED indicators for power supply and connection status
Chipset: VIA VL813
Packaging contents:EX-11247HMS, USB 3.2 Gen 1 cable 2.0m, DIN-Rail Kit, Wallmount Kit, Manual
EX-1181HMS
Smallest 4-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged industrial-grade EX-1181HMS is the smallest USB 3.2 Gen 1 metal hub for up to four end devices. The hub provides four USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to four external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. By supplying power through the two-wire terminal block connector, 1A can be provided to each USB port. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate up to 5Gbps and is backward compatible to USB 1.1. The EX-1181HMS can be powered by USB bus power or via a two-wire terminal block connector. The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 4 Ports
15KV ESD Surge Protection for all 4 Ports
Protection of Devices against voltage fluctuation
Power +7V-48V DC over the Terminal Block
Power supply optionally also from the USB-Bus +5V (Bus-Power)
Easy installation with the included DIN-Rail Kit
Automatic recognition the data transfer rate for the attached external devices
Up to 2.3A current at one port, 1A when all ports in use simultaneously (max. output 20W)
Automatic detection of input polarity on the current terminal block
Rugged Metal Case
1x LED Power-Indicator
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging Contents:EX-1181HMS, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Wall Mounting Bracket, Manual
EX-1163
4 Port USB 2.0 HUB, plastic housing incl. power supply
With the EX-1163 you can extend from one USB 2.0 port to four USB 2.0 ports. It’s possible now to connect up to four external USB 2.0 peripherals devices to one USB 2.0 port from the Notebook or Desktop Computer. He it’s very compact and robustly.
USB 2.0 HUB with four USB 2.0 ports
Automatic recognition the data transfer rate for the attached external peripheral devices
Support all USB 2.0 compatible devices
Power from the USB port (Bus-Power)
Chip-Set: NEC uPD720112
Packaging contents:EX-1163, USB 2.0 cable (2.0 meter), Wall– or table top holder, Manual

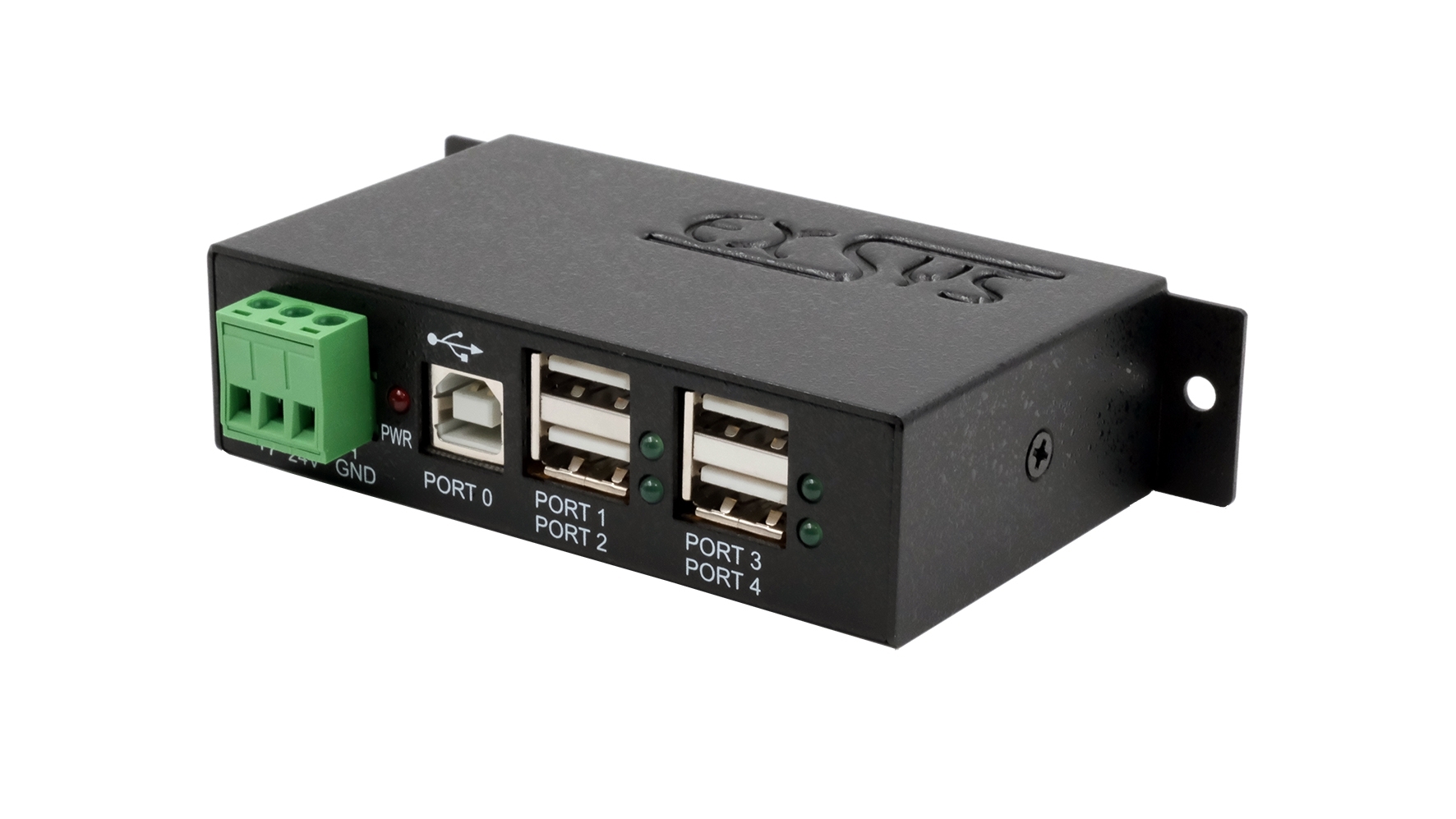

EX-1163HMS
4-Port USB 2.0 Metal HUB with 15KV Surge Protection
The EX-1163HMS is a rugged, industrial-grade USB hub with four USB 2.0 outputs that can be wall-mounted or rail-mounted. It connects to a computer or server via the supplied USB 2.0 cable and features 15KV ESD surge protection for all four downstream USB 2.0 ports. Power is supplied either via USB (bus power) or via the 3-pin terminal block (7-24V DC). Two internal jumpers can be used to configure the power output at the downstream ports to suit individual requirements. The EX-1163HMS is designed to meet the special requirements of industrial applications and is very compact and robust.
USB 2.0 HUB with four downstream ports
15KV ESD surge protection for all 4 ports
Power supply +7 to +24V DC via terminal block
Power supply optionally also from the USB-Bus +5V (bus power)
Allows individual configuration of power output at downstream ports
Automatic detection of input polarity on power terminal block
Automatic detection of data transfer rate of connected peripherals
Easy installation with supplied DIN-Rail bracket
Up to 500mA current per port
Compact industrial design with metal housing
5x status LED
Chipset: Terminus FE 2.1
Two internal jumpers for individual mode control (data and power):
Bus power jumper:
ENA = bus power operation possible
DIS = operation with power supply only (self power)
Host control jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is switched on
Packaging Contents:EX-1163HMS, USB 2.0 cable 2.0m, DIN-Rail kit, manual
EX-1110HMVS-PL
10-Port USB 3.2 Gen 1 HUB Board with 15KV ESD Surge Protection
The USB 3.2 Gen 1 Hub Board EX-1110HMVS-PL is a fully functional industrial USB 3.2 hub with ten downstream ports for integration into custom devices, assemblies or enclosures. It is ideal for embedded systems, kiosks, industrial automation and other specialised applications requiring multiple USB ports.
USB 3.2 Gen 1 hub with ten downstream ports
USB 3.2 Gen 1 data transfer rate up to 5 Gbps
Backward compatible with USB 3.1, 3.0, 2.0, 1.1
15KV ESD surge protection for each output
Protects end devices from voltage fluctuations
Power supply +7V to +24V DC via Terminal Block
Optional power supply from USB bus +5V (bus power)
Automatic detection of data transfer rate of connected peripheral devices
Automatic detection of input polarity on power Terminal Block
Up to 1.5A per port, total output power max. 75 W
Supports USB battery charging V1.2
LED power indicator
Chipset: Genesys
Two jumpers for individual mode control (data and power):
Bus power jumper:
ENA = bus power operation possible
DIS = operation with power supply only (self power)
Host control jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is switched on
Packaging contents:EX-1110HMVS-PL, Terminal Block
EX-1166HMV
USB 2.0 Metal-Hub with 4 ports, Cable can screw lock
With the EX-1166HMV you can extend from one USB 2.0 port to four USB 2.0 ports. It’s possible now to connect up to four external USB 2.0 peripherals devices to one USB 2.0 port from the Notebook or Desktop Computer. He it’s very compact and robustly. With the USB cable EX-K1542V (1.8 meter) A-male to B-male and the power supply you can fix the connector with screw. The cable can’t be disconnect any more by him self. The EX-1166HMV you can fix to the wall or optional you can install the EX-1166HMV with the product EX-6099 (DIN-Rail-Kit) in a 19 inch Rack.
USB 2.0 HUB with four screw lock USB 2.0 ports
Automatic recognition the data transfer rate for the attached external peripheral devices
Support all USB 2.0 compatible devices
Power from the USB Bus (Bus Power) or power supply with screw lock
Chipset: NEC uPD720112
Packaging contents:EX-1166HMV, USB 2.0 cable 2.0m, 5V/4A Power supply, Manual
EX-1180HMS
Smallest 4-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged industrial-grade EX-1180HMS is the smallest USB 3.2 Gen 1 metal hub for up to four end devices. The hub provides four USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to four external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. By supplying power through the two-wire terminal block connector, 1A can be provided to each USB port. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The EX-1180HMS can be powered by USB bus power or via a two-wire terminal block connector (+5V). The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 4 Ports
15KV ESD Surge Protection for all 4 Ports
Protection of Devices against voltage fluctuation
Power +5V DC over the Terminal Block
Power supply optionally also from the USB-Bus +5V (Bus-Power)
Easy installation with the included DIN-Rail Kit
Automatic recognition the data transfer rate for the attached external devices
Up to 2.3A current at one port, 1A when all ports in use simultaneously (max. output 20W)
Automatic detection of input polarity on the current terminal block
Rugged Metal Case
1x LED Power-Indicator
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging Contents:EX-1180HMS, EX-K1110, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Wall Mounting Bracket, Manual
EX-1181HMS-WT
Smallest 4-Port USB 3.2 Gen 1 Metal HUB, 15KV ESD Surge Protection, -40°C to +85°C
The rugged industrial-grade EX-1181HMS-WT is the smallest industrial USB 3.2 Gen 1 metal hub for up to four end devices. It supports SuperSpeed USB 3.2 Gen 1 with a data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. Power is supplied either from the USB bus or via the 2-pin terminal block (7-48 VDC). With an external power supply, 1A can be provided at each USB port. The EX-1181HMS-WT has an extended operating temperature range of -40 to +85°C and 15KV ESD surge protection for the four downstream USB 3.2 Gen 1 ports.
4-Port USB 3.2 Gen 1 Metal HUB
15KV ESD surge protection for all 4 ports
Protects end devices from voltage fluctuations
Extended operating temperature range from -40°C to +85°C
Power supply +7V-48V DC via terminal block
Optional power supply via USB bus +5V (bus power)
Easy installation thanks to the supplied DIN-Rail bracket
Automatic detection of data transfer rate of connected peripherals
Supports 1A current for each output simultaneously
Automatic detection of input polarity at the power connector
Robust metal housing
1x LED power indicator
Chipset: Texas Instruments TUSB8041I
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1181HMS-WT, USB 3.2 Gen 1 cable, DIN-Rail kit, wall bracket, manual
EX-1116HMVS
16-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged, industrial-grade EX-1116HMVS hub provides sixteen bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to sixteen external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable with can be attached to the EX-1116HMVS with thumbscrews without a screwdriver. The EX-1116HMVS must be powered via a DC Jack (+12V to +24V), or via a two-wire terminal block connector (+12V to +24V). The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 16 Ports
15KV ESD Surge Protection for all 16 Ports
Protection of devices against voltage fluctuation
Power +12V up to +24V DC over the DC-Connector or Terminal Block
Easy installation with the included DIN-Rail Kit
Automatic recognition of the data transfer rate for the attached external devices
Up to 2.3A current at one port, 1.5A when all ports in use simultaneously (max. output 120W)
Supports BC v1.2: SDP/CDP/DCP Charging Modes
Automatic detection of input polarity on the terminal block
Rugged metal case
1x LED Power-Indicator
2x LED Active-Indicator USB 3.2 Gen 1 Upstream B-Port
Packaging Contents:EX-1116HMVS, USB 3.2 Gen 1 Cable, DIN-Rail Kit, 2x Mounting Angle, Manual
EX-1110HMVS
10-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged, industrial-grade EX-1110HMVS provides ten bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to ten external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable with can be attached to the EX-1110HMVS with thumbscrews without a screwdriver. The EX-1110HMVS can be powered with USB bus power or via a two-wire terminal block connector (+7V to +24V). The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 10 Ports
15KV ESD Surge Protection on all 10 Ports
Protection of Devices against voltage fluctuation
Power +7V up to +24V DC over the Terminal Block
Power supply optionally also from the USB-Bus +5V (Bus-Power)
Easy installation with the included DIN-Rail Kit
Automatic recognition of the data transfer rate for the attached external devices
Up to 2.3A current at one port, 1.5A when all ports in use simultaneously (max. output 75W)
Support BC v1.2: SDP/CDP/DCP Charging Modes
Automatic detection of input polarity on terminal block
Rugged Metal Case
1x LED Power-Indicator
Chipset: Genesys
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1110HMVS, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Manual

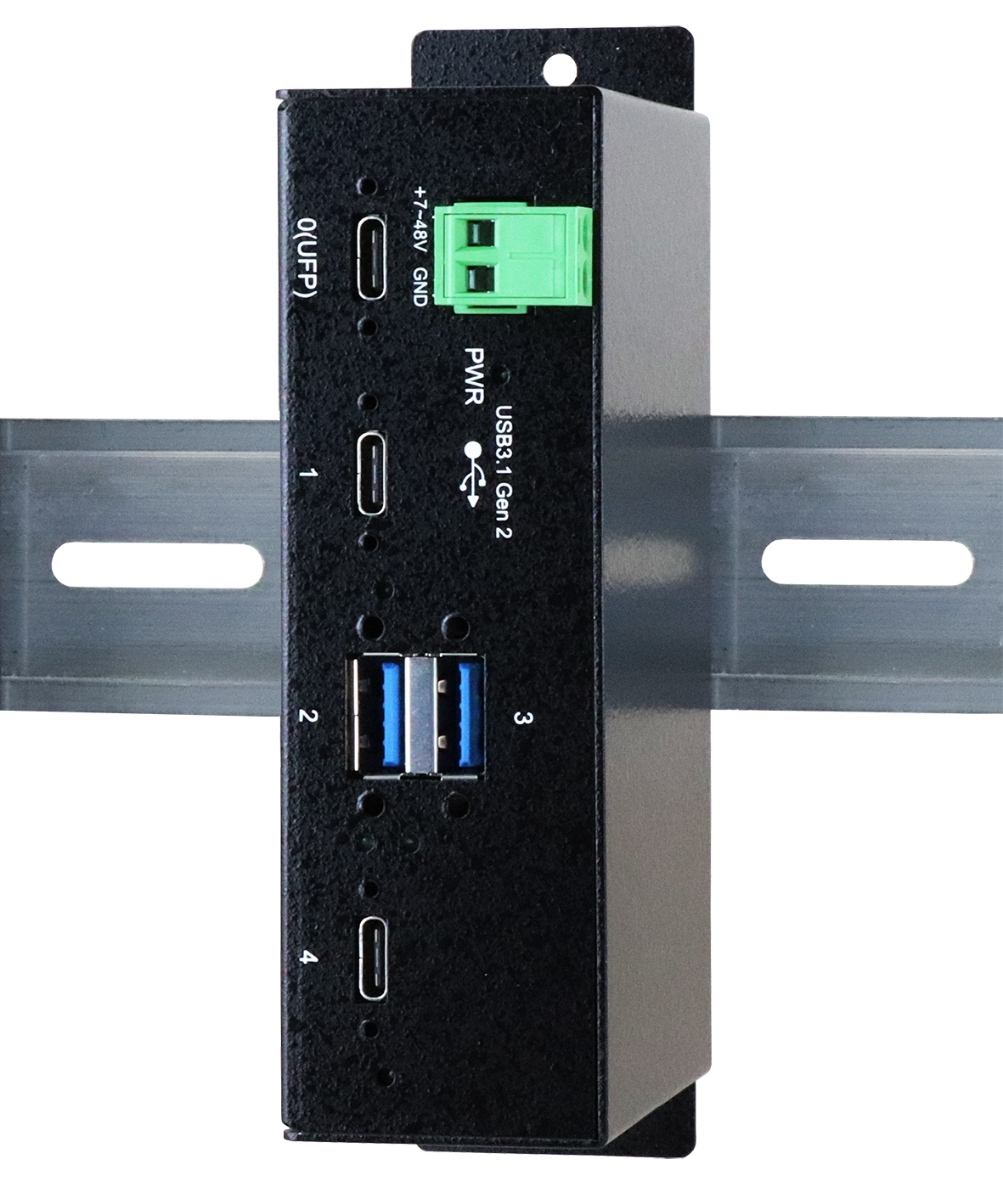

EX-1274HMV
USB 3.2 Gen 2x1 Metal HUB with 4 ports 2x USB-C and 2x USB-A connectors
The EX-1274HMV is a USB 3.2 Gen 2x1 metal HUB and complies with Universal Serial Bus (USB) Revision 3.2 Gen 2 specifications with data transfer rates up to 10Gbps. It offers one USB-C upstream port as well as 4 downstream ports with two USB-C as well as two USB-A connectors to screw. With the built-in RISC USB controller, EX-1274HMV supports simultaneous operation of end devices with different speeds SuperSpeed Plus(SS+), SuperSpeed (SS), High-Speed (HS), Full-Speed (FS) and Low-Speed (LS). It can be used in automation and office applications.
USB 3.2 Gen 2x1 Metal HUB with two USB-C and two USB-A connectors
Up to 3A current at one port, 1A when all ports in use simultaneously (max. output 20W)
Support Fast USB Battery Charging: CDP and DCP modes
Support all USB 1.1 up to 3.2 Gen2 compatible devices
Power from +7V up to +48V DC over terminal block
Support automatically Bus- or Self Power
Metal housing for wall- or rack mounting incl. DIN-Rail-Kit
Built-in port status indicator LED for each port
Chipset: VIA VL820-Q2
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1247HMVS, USB C-C cable 0.5m, Power Supply 16V/3A, Manual
EX-1187HMVS-2
7 Port USB 3.2 Gen 1 HUB with 15KV ESD Surge Protection (DIN-Rail Kit)
The rugged and industrial-grade EX-1187HMVS-2 is a USB 3.2 Gen 1 metal hub for up to seven end devices. The hub provides seven screwable USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to seven external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. The included USB 3.2 Gen 1 cable can be attached to the EX-1187HMVS-2 with thumbscrews without a screwdriver. The EX-1187HMVS-2 can be powered via a DC Jack (+7V to +48V) or via a two-wire terminal block connector (+7V to +48V). The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 7 Ports
15KV ESD Surge Protection for all 7 Ports
Protection of Devices against voltage fluctuation
Power +7V up to +48V DC over the Terminal Block
Easy installation with the included DIN-Rail Kit
Automatic recognition of the data transfer rate for the attached external devices
Up to 900mA current per port
Automatic detection of input polarity on the current terminal block
Rugged Metal Case
1x LED Power-Indicator
Chipset: Genesys
Packaging contents:EX-1187HMVS-2, USB 3.2 Gen 1 cable, DIN-Rail Kit, Manual
EX-12297HMS
7 Port USB 3.2 Gen 2x1 Metal HUB with 2x USB-C and 5x USB-A 3.2 Gen 1, for table, wall and DIN-Rail mounting
The EX-12297HMS is a rugged metal USB 3.2 Gen 2x1 hub for up to seven devices that can be mounted on a wall or DIN-rail. It connects to the host PC via a USB-C cable and provides two USB-C 3.2 Gen 2x1 ports and five USB-A 3.2 Gen 1 ports for end devices. The two USB-C ports offer excellent performance of up to 10Gbps (SuperSpeed USB 10Gbps), while the five USB-A ports transfer data at up to 5Gbps (SuperSpeed USB 5Gbps). Up to 2.5A per port with a maximum of 56W is available from the external power supply. This makes it easy to charge iPhone, iPad, smartphones and tablets. Power is supplied via the plug-in power supply unit supplied or an optionally available DIN-Rail power supply unit (self-power).
USB 3.2 metal HUB with 2x USB-C Gen 2x1 and 5x USB-A Gen 1 downstream
15KV ESD surge protection for each output
Power +9V up to +30V DC via Terminal Block or DC-Connector
Up to 2.5A per USB-port, total output power max. 56W
Automatic recognition the data transfer rate for attached peripherals
Includes wall mount kit and DIN-Rail Kit
Compact industrial design
Rugged metal case
LED indicators for power supply and connection status
Packaging contents:EX-12297HMS, Power Supply (12V/5A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, Wall Mounting Brackets, Manual
EX-12270HMS
10-port USB 3.2 Gen 2 metal hub with 10x USB-C connector, 79.5W
The rugged, industrial-grade EX-12270HMS is a metal USB 3.2 Gen 2x1 hub for up to ten devices that can be mounted on a wall or on a DIN-Rail. It connects to the host PC via a USB-C cable and provides ten USB-C 3.2 Gen 2x1 ports for end devices with outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps). Using the external power supply, the hub provides up to 2.4A per port with a maximum output of 79.5W. This makes it easy to charge iPhones, iPads, smartphones and tablets. Power is supplied via the included power supply or an optional DIN-Rail power supply (self-powered).
USB 3.2 metal HUB with 10x USB-C Gen 2x1 downstream
15KV ESD protection for each output
Power supply +9V to +24V DC via terminal block or DC-jack
Up to 2.4A per port, total output power max. 79.5W
Supports USB battery charging V1.2
Can also be used as a USB charger without connection to the host PC
Automatically detects the data transfer rate of connected peripherals
Wall bracket and DIN-Rail kit included
Rugged metal housing with compact industrial design
LED indicators for power and link Status
Chipset: VL822-Q7
Packaging contents:EX-12270HMS, Power Supply (24V/4A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, Wall mounting brackets, Manual
EX-12297HMS-PL
7-Port USB 3.2 Gen 2x1 HUB Board with 2x USB-C and 5x USB-A 3.2 Gen 1
The USB 3.2 Gen 2x1 Hub Board EX-12297HMS-PL is a fully functional industrial USB 3.2 hub for integration into custom devices, assemblies or enclosures. It is ideal for embedded systems, kiosks, industrial automation and other specialised applications requiring multiple USB ports.
USB 3.2 HUB with 2x USB-C Gen 2x1 and 5x USB-A Gen 1 downstream ports
USB 3.2 Gen 2x1 data transfer rate up to 10 Gbps (USB-C)
Backward compatible to USB 3.1, 3.0, 2.0, 1.1
15KV ESD protection for each output
Power supply +9V to +30V DC via Terminal Block or DC Jack
600W power input overvoltage protection
Over current detection and protection circuit
Up to 2.4A per port, total output power max. 56 W
Supports USB battery charging V1.2
Automatic detection of data transfer rate of connected peripheral devices
LED indicators for power and link status
Packaging contents:EX-12297HMS-PL, Terminal Block
EX-12290HMS-PL
10-Port USB 3.2 Gen 2x1 HUB Board with 4x USB-C and 6x USB-A 3.2 Gen 1
The USB 3.2 Gen 2x1 Hub Board EX-12290HMS-PL is a fully functional industrial USB 3.2 hub for integration into custom devices, assemblies or enclosures. It is ideal for embedded systems, kiosks, industrial automation and other specialised applications requiring multiple USB ports.
USB 3.2 HUB with 4x USB-C Gen 2x1 and 6x USB-A Gen 1 downstream ports
USB 3.2 Gen 2x1 data transfer rate up to 10 Gbps (USB-C)
Backward compatible to USB 3.1, 3.0, 2.0, 1.1
15KV ESD protection for each output
Power supply +9V to +24V DC via Terminal Block or DC socket
600W power input overvoltage protection
Over current detection and protection circuit
Up to 2.4A per port, total output power max. 64 W
Supports USB battery charging V1.2
Automatic detection of data transfer rate of connected peripheral devices
LED indicators for power and link status
Packaging contents:EX-12290HMS-PL, Terminal Block
Tip
EX-12276HMS
16-port USB 3.2 Gen 2 metal hub with 16x USB-C connector, 120W
The rugged, industrial-grade EX-12276HMS is a metal USB 3.2 Gen 2x1 hub for up to sixteen devices that can be mounted on a wall, in a 19"-rack or on a DIN-Rail. It connects to the host PC via a USB-C cable and provides sixteen USB-C 3.2 Gen 2x1 ports for end devices with outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps). Using the external power supply, the hub provides up to 2.4A per port with a maximum output of 120W. This makes it easy to charge iPhones, iPads, smartphones and tablets. Power is supplied via the included power supply or an optional DIN-Rail power supply (self-powered).
USB 3.2 metal HUB with 16x USB-C Gen 2x1 downstream
15KV ESD protection for each output
Power supply +12V to +24V DC via terminal block or DC-jack
Up to 2.4A per port, total output power max. 120W
Supports USB battery charging V1.2
Can also be used as a USB charger without connection to the host PC
Automatically detects the data transfer rate of connected peripherals
Wall bracket, 19"-rack bracket and DIN-Rail kit included
Rugged metal housing with compact industrial design
LED indicators for power and link Status
Chipset: VL822-Q7
Packaging contents:EX-12276HMS, Power Supply (24V/5A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, 19"-rack brackets, Wall mounting brackets, Manual
